H800H

Features: ` Upward compatibility with H8/300 CPU Can execute H8/300 series object programs without alteration` General-register architecture Sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit registers)` Sixty-two basic instructions -8/16/32-bit arithmetic and...

product image

H800H Picture
See larger image
SeekIC No. : 004357931 Detail

H800H: Features: ` Upward compatibility with H8/300 CPU Can execute H8/300 series object programs without alteration` General-register architecture Sixteen 16-bit general registers (also usable as sixteen ...

H800H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
H800H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Upward compatibility with H8/300 CPU Can execute H8/300 series object programs without alteration
`  General-register architecture Sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit registers)
`  Sixty-two basic instructions
   - 8/16/32-bit arithmetic and logic instructions
   - Multiply and divide instructions
   - Powerful bit-manipulation instructions
`  Eight addressing modes
   - Register direct [Rn]
   - Register indirect [@ERn]
   - Register indirect with displacement [@(d:16, ERn) or @(d:24, ERn)]
   - Register indirect with post-increment or pre-decrement [@ERn+ or @ERn]
   - Absolute address [@aa:8, @aa:16, or @aa:24]
   - Immediate [#xx:8, #xx:16, or #xx:32]
   - Program-counter relative [@(d:8, PC) or @(d:16, PC)]
   - Memory indirect [@@aa:8]
`  16-Mbyte linear address space
`  High-speed operation
   - All frequently-used instructions execute in two to four states
   - Maximum clock frequency:                                      18 MHz
   - 8/16/32-bit register-register add/subtract:            111 ns
   - 8 ´ 8-bit register-register multiply:                         778 ns
   - 16 ¸ 8-bit register-register divide:                          778 ns
   - 16 ´ 16-bit register-register multiply:                     1222 ns
   - 32 ¸ 16-bit register-register divide:                        1222 ns
`  Two CPU operating modes
   - Normal mode (cannot be used with this LSI)
   - Advanced mode
`  Low-power mode Transition to power-down state by SLEEP instruction


Pinout

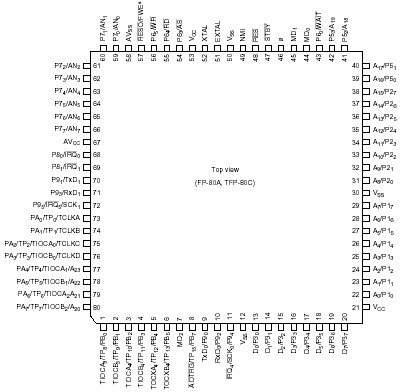

Connection Diagram


Specifications

Item Symbol Value Unit
Power supply voltage VCC 0.3 to +4.3 V
Input voltage (except port 7) Vin 0.3 to VCC +0.3 V
Input voltage (port 7) Vin 0.3 to AVCC +0.3 V
Analog power supply voltage AVCC 0.3 to +7.0 V
Analog input voltage VAN 0.3 to AVCC +0.3 V
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +125 °C
