Product Details

Description



Features:

• High Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . 120V/s
• Low Offset Voltage. . . . . . . . . . . . . . . . . . . . . . . . .300V
• High Open Loop Gain . . . . . . . . . . . . . . . . . . . . . . .130dB
• Gain Bandwidth Product . . . . . . . . . . . . . . . . . . . 150MHz
• Low Noise Voltage at 1kHz . . . . . . . . . . . .  . . 8.3nV/Hz
• Minimum Gain Stability . . . . . . . . . . . . . . . . . . . . . . . . 5


Application

• High Speed Instrumentation
• Data Acquisition Systems
• Analog Signal Conditioning
• Precision, Wideband Amplifiers
  - Pulse/RF Amplifiers


Pinout

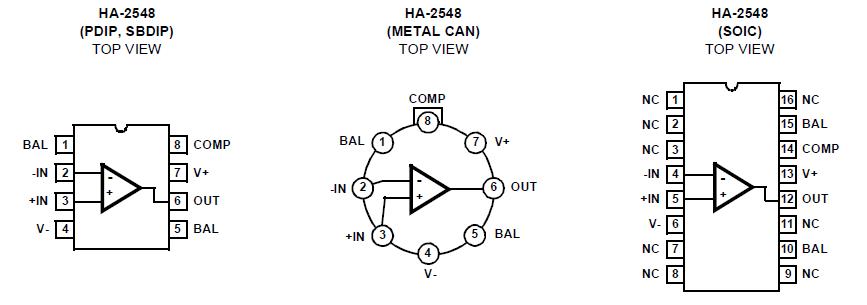

Connection Diagram


Specifications

Supply Voltage Between V+ and V- Terminals . . . . . . . . . . . . . .40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5V
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA


Description

The HA-2548 is an op amp that offers a unique combination of bandwidth, slew rate, and precision specifications. These features can eliminate the need for composite op amp designs and external calibration circuitry.

Optimized for gains 5, the HA-2548 has a gain-bandwidth product of 150MHz and a slew rate of 120V/s while maintaining extremely high open loop gain (130dB Typ) and low offset voltage (300V Typ). These specifications are achieved through uniquely designed input circuitry and a single ultra-high gain stage that minimizes the AC signal path. Capable of delivering over 30mA of output current, the HA-2548 is ideal for precision, high speed applications such as signal conditioning, instrumentation, video/pulse amplifiers and buffers.

For information on the military version of this device please refer to the HA-2548/883 datasheet.
