Features: • This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Low Offset Voltage (+25). . . . . . . . . .. .200V (Max)
(Full Temp.) . . . . . . . . . . . . . . . . . . . . . .350V (Max)
• Low Offset Voltage Drift at Temp.. . . .. . 2V/ (Max)
• Offset Voltage Match . . . . . . . . . . . . . .. .350V (Max)
• High Channel Separation . . . . . . . . . . . . .120dB (Min)
• Low Noise (f 100Hz) . . . . . . . . . .. 10nV/Hz (Max)
• Wide Bandwidth. . . . . . . . . . . . . . . . . . . . .4MHz (Typ)
• High CMRR/PSRR . . . . . . . . . . . . . . . . . . . .100dB (Min)
• High Voltage Gain . . . . . . . . . . . . . . . . . 800kV/V (Min)
• Dielectric IsolationApplication• Instrumentation Amplifiers
• State-Variable Filters
• Precision Integrators
• Threshold Detectors
• Precision Data Acquisition Systems

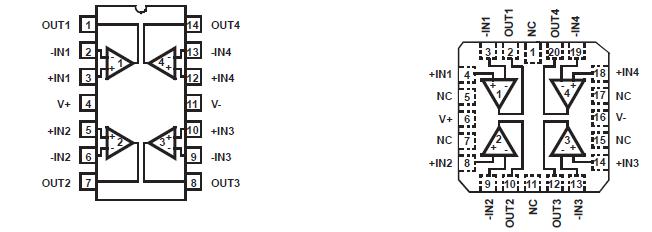

• Low-Level Transducer AmplifiersPinout
SpecificationsVoltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . 40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 6V
Voltage at Either Input Terminal . . . . . . . . . . . . . . . . V+ to VInput
Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. .. . .25mA
Output Current . . . . . . . . . . . . . . . . .. .Full Short Circuit Protection
Output Current Duration. . . . . . . . . . . . . . . . . . . . . . . . . Indefinite
(One Amplifier Shorted to Ground)
Junction Temperature. . . . . . . . . . . . . . . . . . . . . .. . . . . . . . +175
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2000V
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . +300
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
DescriptionThe HA-5134/883 is a precision quad operational amplifier that is pin compatible with the OP-400, LT1014, OP11, RM4156, and LM148 as well as the HA-4741/883. Each amplifier features guaranteed maximum values for offset voltage of 350V, offset voltage drift of 2V/ (max), and offset current of 75nA over the full military temperature range while CMRR/PSRR is guaranteed greater than 94dB and open loop gain is guaranteed above 500kV/V from -55 to +125. Room temperature specifications exceed these values such as an offset voltage matching specification between channels of 200V (max) at +25.
Precision performance of the HA-5134/883 is enhanced by a noise voltage density of 7nV/Hzat 1kHz (typ), noise current density of 2pA/Hz at 1kHz and channel separation of 120dB (min). Each of the four unity gain stable amps on the quad are electrically isolated, having only supply lines in common and are fabricated using Dielectric Isolation to insure quality performance in the most demanding applications.
The HA-5134/883 is ideal for compact circuits such as instrumentation amplifiers, state-variable filters, and low level transducer amplifiers. Other applications include precision data acquisition systems, precision integrators, and accurate threshold detectors in designs where board space is a limitation.
