HA-5320

Features:

• Gain, DC. . . . . . . . . . . . . . . . . . . . . . .. . .. . . . . . . . 2 x 10⁶ V/V
• Acquisition Time . . . . . . . . . . . . . . . . . . . . . . .. . 1.0s (0.01%)
• Droop Rate . . . 0.08V/s (25^o C)17V/s (Full Temperature)

• Aperture Time . . . . . . . . . . . . . . . . .. . .. . . . . . .. . . . . . . . 25ns
• Hold Step Error (See Glossary) . . . . . . . . .. . . . . . . . . . . 5mV
• Internal Hold Capacitor
• Fully Differential Input
• TTL Compatible




Application

• Precision Data Acquisition Systems
• Digital to Analog Converter Deglitcher
• Auto Zero Circuits
• Peak Detector

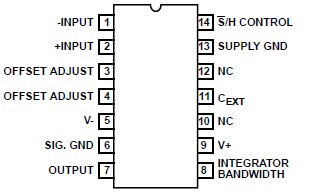

Pinout






Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24V
Digital Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +8V, -15V
Output Current, Continu(Note 1) . . . . . . . . . . . . . . .... . . . ±20mA
NOTES:
1. Internal Power Dissipation may limit Output Current below 20mA.ous




Description

The HA-5320 was designed for use in precision, high speed data acquisition systems. The HA-5320 circuit consists of an input transconductance amplifier capable of providing large amounts of charging current, a low leakage analog switch, and an output integrating amplifier. The analog switch sees virtual ground as its load; therefore, charge injection on the hold capacitor is constant over the entire input/output voltage range. The pedestal voltage resulting from this charge injection can be adjusted to zero by use of the offset adjust inputs. The device includes a hold capacitor. However, if improved droop rate is required at the expense of acquisition time, additional hold capacitance may be added externally. This monolithic HA-5320 is manufactured using the Intersil Dielectric Isolation Process, minimizing stray capacitance and eliminating SCRs. This allows higher speed and latchfree operation. For further information, please see Application Note AN538.
