Part Number: HA118144AF
Description: The HA118144AF i s a bipolar IC that wa s developed to perform the analog signal processing between th...
- Table of contents:
HA118144AF
-
Suppliers
DataSheet
General Description
HA118144AF General Description
The HA118144AF i s a bipolar IC that wa s developed to perform the analog signal processing between the CCD and the ADC in a CCD camera, and is optimal for use in CCD camera digital signal processing systems.
HA118144AF Maximum Ratings
| Item | Symbol | Rated Value | Unit |
| Maximum power supply voltage 1 | VCC5 Max |
6.0 | V |
| Maximum power supply voltage 2 | VCC9 Max |
10.0 | V |
| Operating temperature | Topr | 10 to +75 | |
| Storage temperature | Tstg | 55 to +125 | |
| Operating power supply voltage 1 | VOP5 | 4.75 to 5.25 | V |
| Operating power supply voltage 2 | VOP9 | 8.5 to 9.5 | V |
| Power dissipation | PT | 440 | mW |
Notes: 1. These values are for the FQFP package mounted under the following conditions.
Substrate material: Glass epoxy
Wiring density: 40 mm *1.5 mm 30%
2. This IC is for use in consumer products. It should not be used in industrial products, or in products that will be used outdoors for extended periods.
HA118144AF Features
• Excellent suppression of CCD output lower frequency noise by using clamp-type correlated double sampling.
• A high S/N ration by using dual (pre- and post-) AGC amplifi e rs and high sensitiv i t y based on increased coverage.
• P rovides compensation for IC va ri ations and imaging device sensitivity variations with an 8 state gain select circuit.
• Allows the AGC, gain select, and knee control to be controlled f rom the system microprocessor over a serial interface.
• A high S/N ration by using dual (pre- and post-) AGC amplifi e rs and high sensitiv i t y based on increased coverage.
• P rovides compensation for IC va ri ations and imaging device sensitivity variations with an 8 state gain select circuit.
• Allows the AGC, gain select, and knee control to be controlled f rom the system microprocessor over a serial interface.

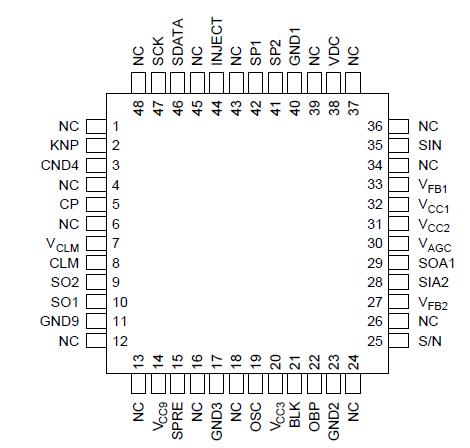

HA118144AF Connection Diagram
HA118144AF
PDF/DataSheet Download
- Datasheet: HA118144AF
- File Size: 110244 KB
- Manufacturer: ETC [ETC]
- Click here to Download
