Part Number: HA13532NT



MFG: N/A

Package Cooled: NA/

D/C: 09+

Description: The HA13532NT is an IC for control a three-phase stepping motor.


Urgent Purchase

HA13532NT General Description


The HA13532NT is an IC for control a three-phase stepping motor.

HA13532NT Maximum Ratings

Item Symbol Rating Unit Notes
Power supply voltage VCC 30 V 1
Input voltage Vin 7 V 2
Power dissipation PT 910 mW 3
Operating temperature Topr 10 to +70 °C
Storage temperature Tstg 55 to +125 °C
Output current Ireg 2 mA
Notes: 1. The operating power supply voltage range is VCC = 10 V to 27.6 V.
           2. Applies to logic and DAC input pins.
           3. Permitted at Ta = 70°C, if thermal resistance is as below:
           j a  60°C/W (glass-epoxy board)

HA13532NT Features

·  Wide operating voltage range
·  Few external components

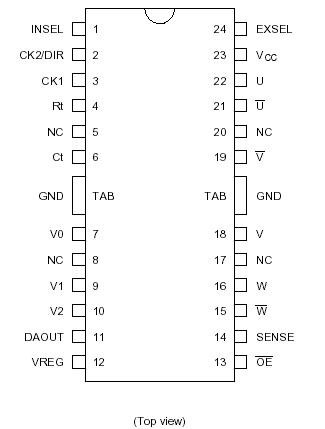

HA13532NT Connection Diagram

HA13532NT Connection Diagram

HA13532NT datasheet

HA13532NT
PDF/DataSheet Download
