General Description
HA13705C General Description
The HA13705C is high side power driver IC with protectors and diagnostic function. The device is especially designed to switch inductive loads.
HA13705C Maximum Ratings
| Item | Symbol | Rating | Unit | Notes |
| Continuous supply voltage | VDD | 13 to 35 | V | 1 |
| Transient supply voltage | VDD | 60 | V | 2 |
| Input voltage | VIN | 0.3 to 30 | V | |
| Output voltage | Vout | 25 to VDD | V | 3 |
| Status voltage | Vs | 0.3 to +15 | V | |
| Output current | Iout | - | A | 3, 4 |
| Status current | Is | 5 | mA | |
| Power dissipation | PT | - | W | 5 |
| Package thermal resistance/ Junction to case |
jc |
5 | °C/W | |
| Package thermal resistance/ Junction to air |
ja |
70 | °C/W | |
| Junction temperature range | Tj | 40 to 150 | °C | |
| Storage temperature range | Tstg | 55 to +150 | °C |
VDD = 7 to 16 V (Normal)
16 to 25 V (Jump up start 5 minutes MAX)
13 V (Reverse Battely 5 minutes MAX)
2. Load dump condition
HA13705C Features
` Protected against 60 V load dump condition
` Low RON (0.17 Typ)
` Wide operating supply voltage range (VDD = 7 V to 25 V)
` High sustaining voltage (25 V)
` Protected against reverse supply voltage (13 V)
` Protected against short circuit condition
` Input compatible with TTL, LS-TTL, or 5 V CMOS
` Low RON (0.17 Typ)
` Wide operating supply voltage range (VDD = 7 V to 25 V)
` High sustaining voltage (25 V)
` Protected against reverse supply voltage (13 V)
` Protected against short circuit condition
` Input compatible with TTL, LS-TTL, or 5 V CMOS

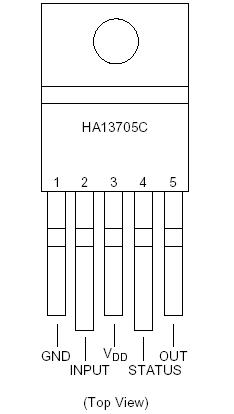

HA13705C Connection Diagram
