Purchase HA22022, In-stock HA22022 From SeekIC.
MFG:Hitachi Package Cooled:SOT23-5 D/C:04+
- Table of contents:
HA22022
-
Suppliers
DataSheet
General Description
HA22022 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
| Supply voltage |
Vdd |
5 |
V |
| Maximum current |
Idd |
6 |
mA |
| Power dissipation |
Pd |
100 |
mW |
| Channel temperature |
Tch |
150 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Operation temperature |
Topr |
20 to +70 |
°C |
| Maximum input power | Pin max |
+15 |
dBm |
HA22022 Features
` Suitable for low noise amplifier of Micro Wave Application(1.5 to 1.9GHz)
` Low voltage and low current operation (3V, 3mA typ.)
` Low noise (1.3 dB typ. @1.5Ghz)
` High power gain (16 dB typ. @1.5GHz)
` Builtin matching circuits (50 )
` Small surface mount package (MPAK5)
` Low voltage and low current operation (3V, 3mA typ.)
` Low noise (1.3 dB typ. @1.5Ghz)
` High power gain (16 dB typ. @1.5GHz)
` Builtin matching circuits (50 )
` Small surface mount package (MPAK5)

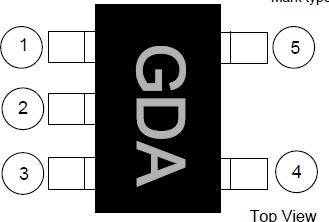

HA22022 Connection Diagram
HA22022
PDF/DataSheet Download
- Datasheet: HA22022
- File Size: 46342 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
