HAF1009(S)

Features: • Logic level operation (-4 to -6 V Gate drive)• High endurance capability against to the short circuit• Builtin the over temperature shutdown circuit• Latch type shutdown operation (Need 0 voltage recovery)Specifications Item Symbol Ratings Unit ...

product image

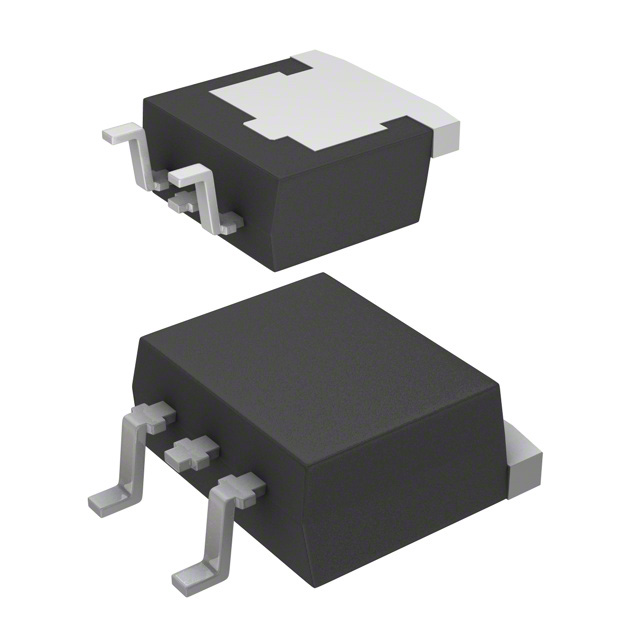

HAF1009(S) Picture
See larger image
SeekIC No. : 004358471 Detail

HAF1009(S): Features: • Logic level operation (-4 to -6 V Gate drive)• High endurance capability against to the short circuit• Builtin the over temperature shutdown circuit• Latch type s...

HAF1009(S) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HAF1009(S)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Logic level operation (-4 to -6 V Gate drive)
• High endurance capability against to the short circuit
• Builtin the over temperature shutdown circuit
• Latch type shutdown operation (Need 0 voltage recovery)


Specifications

Item
Symbol
Ratings
Unit
Drain to source voltage
VDSS
60
V
Gate to source voltage
VGSS
16
V
Gate to source voltage
VGSS
2.5
V
Drain current
ID
40
A
Drain peak current
ID (pulse) Note1
80
A
Body-drain diode reverse drain
current
IDR
40
A
Channel dissipation
PchNote2
50
W
Channel temperature
Tch
150
°C
Storage temperature
Tstg
55 to +150
°C
Notes: 1. PW 10s, duty cycle 1 %
            2. Value at Tc = 25°C


Description

This HAF1009(S) FET has the over temperature shutdown capability sensing to the junction temperature. This HAF1009(S) FET has the builtin over temperature shutdown circuit in the gate area. And this circuit operation to shutdown the gate voltage in case of high junction temperature like applying over power consumption, over current etc.
