HCPL-0466

Minimum Operating Temperature : - 40 C
Packaging : Tube
Isolation Voltage : 3750 Vrms
Package / Case : SOIC-8
Maximum Power Dissipation : 145 mW
Maximum Forward Diode Voltage : 1.8 V
Maximum Reverse Diode Voltage : 5 V
Maximum Operating Temperature : + 100 C
Output Type : Open Collector
Maximum Propagation Delay Time : 650 ns
Maximum Forward Diode Current : 20 mA
Maximum Continuous Output Current : 15 mA


Features:

• Performance Specified for Common IPM Applications over Industrial Temperature Range: -40°C to 100°C
• Fast Maximum Propagation Delays
tPHL = 400 ns
tPLH = 550 ns
• Minimized Pulse Width Distortion (PWD = 450 ns)
• 15 kV/ms Minimum Common Mode Transient Immunity at VCM = 1500 V
• CTR > 44% at IF = 10 mA
• Safety Approval
UL Recognized - 2500 V rms
for 1 minute (5000 V rms for
1 minute for HCNW4506 and
HCPL-4506 Option 020) per
UL1577
CSA Approved
VDE 0884 Approved
-VIORM = 630 V peak for HCPL-4506 Option 060
-VIORM = 1414 V peak for HCNW4506
BSI Certified (HCNW4506)




Application

• IPM Isolation
• Isolated IGBT/MOSFET Gate Drive
• AC and Brushless DC Motor Drives
• Industrial Inverters




Pinout

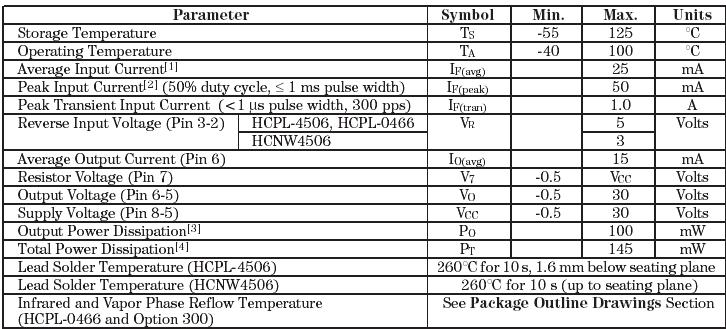

Specifications






Description

The HCPL-4506 and HCPL-0466 contain a GaAsP LED while the HCNW4506 contains an AlGaAs LED. The LED is optically
coupled to an integrated high gain photo detector. Minimized propa-gation delay difference between  HCPL-4506 and HCPL-0466  make these optocouplers excellent solutions for improving inverter efficiency through reduced switching dead time.
An on chip 20 kW output pull-up resistor can be enabled by shorting output pins 6 and 7, thus eliminating the need for an external pull-up resistor in common IPM applications. Specifications and performance plots are given for typical IPM
applications.




Parameters:

Technical/Catalog Information	HCPL-0466
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Surface Mount
Package / Case	8-SOIC (3.9mm Width)
Isolation Voltage	3750Vrms
Configuration	1, One Direction
Input Type	DC
Output Type	Open Collector
Data Rate	1Mbs
Current - Output/Channel	15mA
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HCPL 0466 HCPL0466 516 1040 5 ND 51610405ND 516-1040-5
