General Description
HCPL-7860 Maximum Ratings
| Parameter | Symbol |
Min. |
Max. |
Units |
Note |
| Storage Temperature | TS |
-55 |
125 |
°C |
|
| Ambient Operating Temperature | TA |
-40 |
+85 |
°C |
|
| Supply Voltages | VDD1, VDD2 |
0 |
5.5 |
Volts |
|
| Steady-State Input Voltage | VIN+, VIN- |
-2.0 |
VDD1 + 0.5 |
Volts |
|
| Two Second Transient Input Voltage | -6.0 |
Volts |
|||
| Output Voltages | MCLK, MDAT |
-0.5 |
VDD2 + 0.5 |
Volts |
|
| Lead Solder Temperature | 260°C for 10 sec., 1.6 mm below seating plane |
17 |
|||
| Solder Reflow Temperature Profile | See Maximum Solder Reflow Thermal Profile section |
||||
HCPL-7860 Features
• 12-bit Linearity
• 700 ns Conversion Time (Pre-Trigger Mode 2)
• 5 Conversion Modes for Resolution/Speed Trade-Off; 12-bit Effective Resolution with 18 ms Signal Delay (14-bit with 94 ms)
• Fast 3 ms Over-Range Detection
• Serial I/O (SPI®, QSPI® and Microwire® Compatible)
• ± 200 mV Input Range with Single 5 V Supply
• 1% Internal Reference
• Offset Calibration
• -40°C to +85°C Operating Temperature Range
• 15 kV/ms Isolation Transient Immunity
• Regulatory Approvals; UL, CSA, VDE
• 700 ns Conversion Time (Pre-Trigger Mode 2)
• 5 Conversion Modes for Resolution/Speed Trade-Off; 12-bit Effective Resolution with 18 ms Signal Delay (14-bit with 94 ms)
• Fast 3 ms Over-Range Detection
• Serial I/O (SPI®, QSPI® and Microwire® Compatible)
• ± 200 mV Input Range with Single 5 V Supply
• 1% Internal Reference
• Offset Calibration
• -40°C to +85°C Operating Temperature Range
• 15 kV/ms Isolation Transient Immunity
• Regulatory Approvals; UL, CSA, VDE

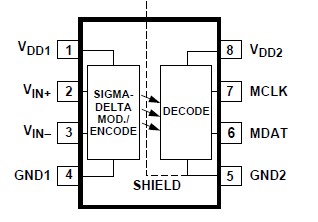

HCPL-7860 Connection Diagram
