Part Number: HCS74T
Description: Intersil's Satellite Applications Flow (SAF)devicesarefull...
- Table of contents:
HCS74T
-
Suppliers
DataSheet
General Description
HCS74T General Description
Intersil's Satellite Applications Flow (SAF)devicesarefully tested and guaranteed to 100kRAD total dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability.
The Intersil HCS74T is a Radiation Hardened Positive Edge Triggered Flip-Flop with set and reset.
The HCS74T utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family.
HCS74T Features
*QML Class T, Per MIL-PRF-38535
*Radiation Performance
-Gamma Dose () 1 x 105 RAD(Si)
-Latch-Up Free Under Any Conditions, SOS Process
-SEP Effective LET No Upsets: >100 MEV-cm2/mg
-Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)
*3 Micron Radiation Hardened SOS CMOS
*Significant Power Reduction Compared to LSTTL ICs
*DC Operating Voltage Range: 4.5V to 5.5V
*Input Logic Levels
- VIL = 30% of VCC Max
- VIH= 70% of VCC Min
*Input Current Levels Ii 5A at VOL,VOH
*Radiation Performance
-Gamma Dose () 1 x 105 RAD(Si)
-Latch-Up Free Under Any Conditions, SOS Process
-SEP Effective LET No Upsets: >100 MEV-cm2/mg
-Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)
*3 Micron Radiation Hardened SOS CMOS
*Significant Power Reduction Compared to LSTTL ICs
*DC Operating Voltage Range: 4.5V to 5.5V
*Input Logic Levels
- VIL = 30% of VCC Max
- VIH= 70% of VCC Min
*Input Current Levels Ii 5A at VOL,VOH

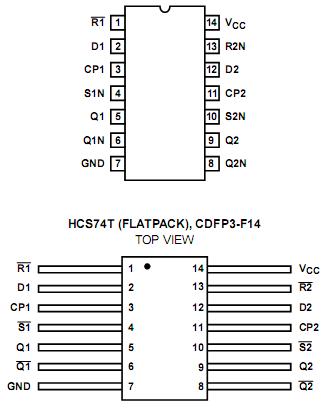

HCS74T Connection Diagram
HCS74T
PDF/DataSheet Download
- Datasheet: HCS74T
- File Size: 127311 KB
- Manufacturer: Intersil
- Click here to Download
