HCTL-1100

Motor / Motion / Ignition Controllers & Drivers Motion Control IC

product image

HCTL-1100 Picture
See larger image
SeekIC No. : 00534100 Detail

HCTL-1100: Motor / Motion / Ignition Controllers & Drivers Motion Control IC

HCTL-1100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCTL-1100
Mfg:
Avago Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Brushless DC Motor Controller Operating Supply Voltage : 5 V
Supply Current : 30 mA Mounting Style : Through Hole
Package / Case : DIP-40

Description

Product :
Packaging :
Mounting Style : Through Hole
Operating Supply Voltage : 5 V
Type : Brushless DC Motor Controller
Supply Current : 30 mA
Package / Case : DIP-40


Features:

Features
• Low Power CMOS
• PDIP and PLCC Versions Available
• Enhanced Version of the HCTL-1000
• DC, DC Brushless, and Step Motor Control
• Position and Velocity Control
• Programmable Digital Filter and Commutator
• 8-Bit Parallel, and PWM Motor Command Ports
• TTL Compatible
• SYNC Pin for Coordinating Multiple HCTL-1100 ICs
• 100 kHz to 2 MHz Operation
• Encoder Input Port


Application

Typical applications for the HCTL-1100 include printers, medical instruments, material handling machines, and industrial automation.

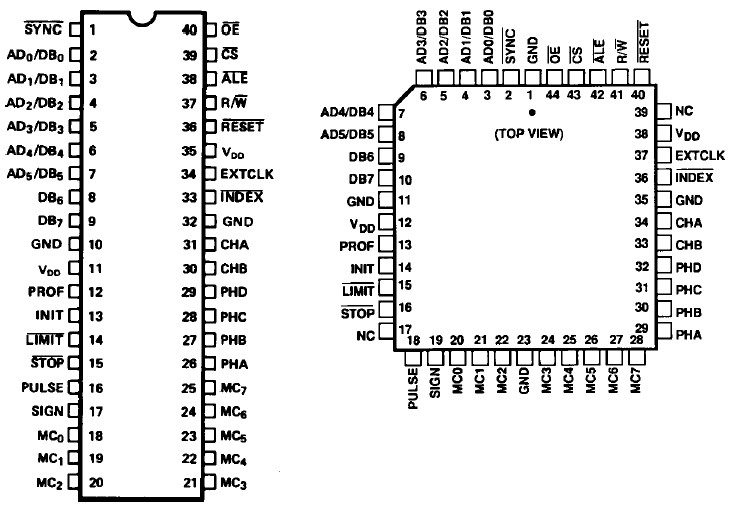

Pinout

Connection Diagram


Specifications

Operating Temperature, TA ................................................................... -20 to 85
Storage Temperature, TS .................................................................... -55 to 125
Supply Voltage, VDD ...............................................................................-0.3 V to 7 V
Input Voltage, VIN ......................................................................-0.3 V to VDD +0.3 V
Maximum Operating Clock Frequency, fCLK ...................................................... 2 MHz


Description

The HCTL-1100 series is a high performance, general purpose motion control IC, fabricated in HP CMOS technology. It frees the host processor for other tasks by performing all the time-intensive functions of digital motion control. The programmability of all control parameters provides maximum flexibility and quick design of control systems with a minimum number of components. In addition to the HCTL-1100, the complete control system consists of a host processor to specify commands, an amplifier, and a motor with an incremental encoder (such as the HP HEDS- 5XXX, -6XXX, -9XXX series). No analog compensation or velocity feedback is necessary.
