Product Details

Description



Features:

`Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz)
`1 copy of clock out with spread spectrum modulation @3.3 V
`1 copy of reference clock @3.3 V
`Programmable spread spectrum modulation (0.5%, 1.0%, 3.0% down spread modulation and spread spectrum disable mode.)
`SOP8pin
`Pin to pin compatible with HD151TS302RP

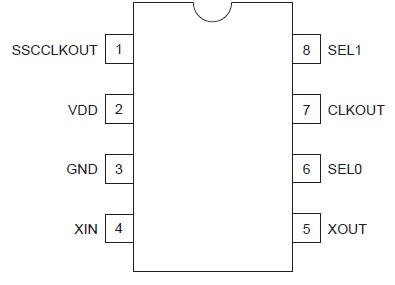

Pinout

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Conditions
Supply voltage
VDD
0.5 to 4.6
V
Input voltage
VI
0.5 to 4.6
V
Output voltage *1
VO
0.5 to
VDD+0.5
V
Input clamp current
IK
50
mA
VI < 0
Output clamp current
IOK
50
mA
VO < 0
Continuous output current
IO
±50
mA
VO = 0 to VDD
Maximum power dissipation
at Ta = 55 (in still air)
0.7
W
Storage temperature
Tstg
65 to +150

Notes: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
1. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.




Description

The HD151TS302A is a high-performance Spread Spectrum Clock modulator. It is suitable for low EMI solution.
