General Description
HD155101BF General Description
The HD155101BF was developed for GSM and EGSM cellular systems, and integrates most of the functions of a transceiver. The HD155101BF incorporates the bias circuit for a RF LNA, a 1st mixer, 1st-IF amplifier, 2nd mixer, AGC amplifier and an IQ quadrature demodulator for the receiver, and an IQ quadrature modulator and offset PLL for the transmitter. Also, on chip are the dividers for the 1st & 2nd local oscillator signals and 90° phase splitter. Moreover the HD155101BF includes control circuits to implement power saving modes. These functions can operate down to 2.7 V and are housed in a 48-pin LQFP SMD package.
Hence the HD155101BF can form a small size transceiver handset for GSM and EGSM by adding a PLL frequency synthesizer IC, a power amplifier and some external components. See page 7 "Configuration".
The HD155101BF is fabricated using a 0.6 mm double-polysilicon Bi-CMOS process.
HD155101BF Maximum Ratings
| Item | Symbol | Ratings | Unit |
| Power supply voltage (VCC) | VCC | 0.3 to +4.0 | V |
| Power supply voltage (VCCCOMP) | VCCCOMP | VCC to +5.5 | V |
| Pin voltage | VT | 0.3 to VCC + 0.3 (6.0 Max) | V |
| Maximum power dissipation | PT | 400 | mW |
| Operating temperature | Topr | 20 to +85 | °C |
| Storage temperature | Tstg | 55 to +125 | °C |
HD155101BF Features
Receiver (RX)
` Low Noise Amplifier (LNA) bias circuit
` 1st mixer
` IF amplifier
` 2nd mixer
` Automatic gain control amplifier (AGC)
` IQ demodulator with 90° phase splitter
Transmitter (TX)
` IQ modulator with 90° phase splitter
` Offset PLL
` Down converter
` Phase comparator
` TX VCO driver
` IF dividers
` Power saving circuit
` IFVCO
` Highly integrated RF processing for hand-portables
` Wide operating frequency
RX:
` RF: 925 to 960 MHz
` 1st IF: 130 to 300 MHz
` 2nd IF: 26 to 60 MHz
TX:
` RF: 880 to 915 MHz
` IF: 156 to 360 MHz
` Offset PLL architecture reduces TX spurious
` Low current consumption (Vcc = 3 V)
` RX mode: 42.5 mA Typ (including IFVCO current (2.5 mA Typ)) + LNA transistor current (5.6 mA Typ)
` TX mode: 38.0 mA Typ (including IFVCO current (2.5 mA Typ)) Idle mode: 1 mA Typ
` Operating supply voltage:
` Phase comparator and TX VCO driver circuits: 2.7 to 5.25 V
` Other blocks: 2.7 to 3.6 V
` Operating temperature range: 20 to +85°C
` 48 pin SMD Low Profile Quad Flat Package (LQFP): FP-48
` Low Noise Amplifier (LNA) bias circuit
` 1st mixer
` IF amplifier
` 2nd mixer
` Automatic gain control amplifier (AGC)
` IQ demodulator with 90° phase splitter
Transmitter (TX)
` IQ modulator with 90° phase splitter
` Offset PLL
` Down converter
` Phase comparator
` TX VCO driver
` IF dividers
` Power saving circuit
` IFVCO
` Highly integrated RF processing for hand-portables
` Wide operating frequency
RX:
` RF: 925 to 960 MHz
` 1st IF: 130 to 300 MHz
` 2nd IF: 26 to 60 MHz
TX:
` RF: 880 to 915 MHz
` IF: 156 to 360 MHz
` Offset PLL architecture reduces TX spurious
` Low current consumption (Vcc = 3 V)
` RX mode: 42.5 mA Typ (including IFVCO current (2.5 mA Typ)) + LNA transistor current (5.6 mA Typ)
` TX mode: 38.0 mA Typ (including IFVCO current (2.5 mA Typ)) Idle mode: 1 mA Typ
` Operating supply voltage:
` Phase comparator and TX VCO driver circuits: 2.7 to 5.25 V
` Other blocks: 2.7 to 3.6 V
` Operating temperature range: 20 to +85°C
` 48 pin SMD Low Profile Quad Flat Package (LQFP): FP-48

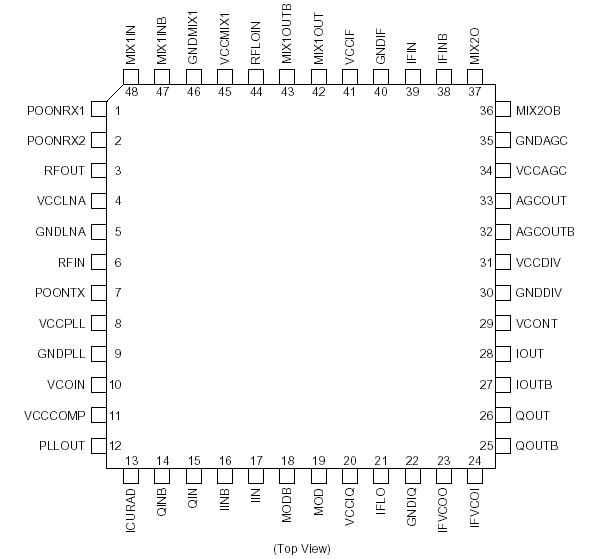

HD155101BF Connection Diagram
