HD155111F

Features: Receiver (RX)` Low Noise Amplifier (LNA) bias circuit` 1st mixer` IF amplifier` 2nd mixer` Automatic gain control amplifier (AGC)` IQ demodulator with 90° phase splitterTransmitter (TX)` IQ modulator with 90° phase splitter` Offset PLL` Down converter` Phase comparator` TX VCO driveOther...

product image

HD155111F Picture
See larger image
SeekIC No. : 004360034 Detail

HD155111F: Features: Receiver (RX)` Low Noise Amplifier (LNA) bias circuit` 1st mixer` IF amplifier` 2nd mixer` Automatic gain control amplifier (AGC)` IQ demodulator with 90° phase splitterTransmitter (TX)` I...

HD155111F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD155111F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Receiver (RX)
`  Low Noise Amplifier (LNA) bias circuit
`  1st mixer
`  IF amplifier
`  2nd mixer
`  Automatic gain control amplifier (AGC)
`  IQ demodulator with 90° phase splitter
Transmitter (TX)
`  IQ modulator with 90° phase splitter
`  Offset PLL
`  Down converter
`  Phase comparator
`  TX VCO drive
Others
`  IF dividers
`  Power saving circuit
`  IFVCO
Features
`  Highly integrated RF processing for hand-portables
`  Wide operating frequency
RX:
`  RF: 1805 to 1880 MHz
`  1st IF: 130 to 300 MHz
`  2nd IF: 26 to 60 MHz
TX:
`  RF: 1710 to 1785 MHz
`  IF: 120 to 180 MHz
`  Offset PLL architecture reduces TX spurious
`  Low current consumption (Vcc = 3 V)
`  RX mode: 42.5 mA Typ (including IFVCO current (2.5 mA Typ)) + LNA transistor current (5.6 mA Typ)
`  TX mode: 38.0 mA Typ (including IFVCO current (2.5 mA Typ))
`  Idle mode: 1 mA Typ
`  Operating supply voltage:
`  Phase comparator and TX VCO driver circuits: 2.7 to 5.25 V
`  Other blocks: 2.7 to 3.6 V
`  Operating temperature range: 20 to +75°C
`  48 pin SMD Low Profile Quad Flat Package (LQFP): FP-48


Pinout

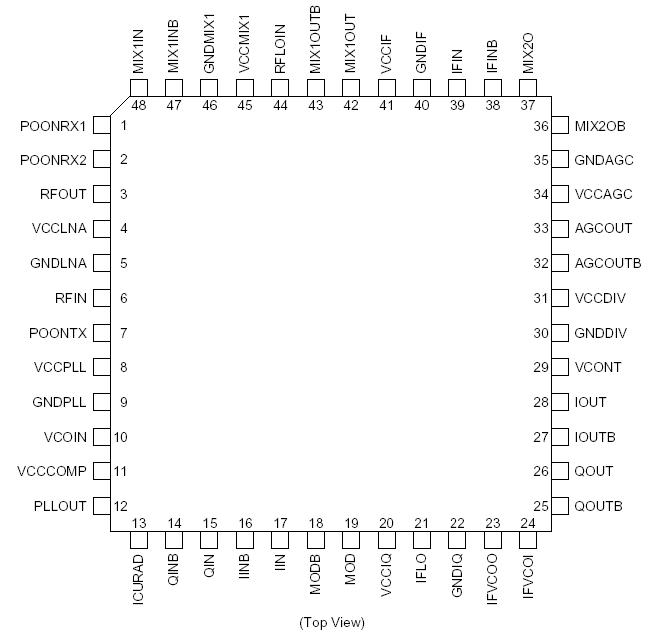

Connection Diagram


Specifications

Item Symbol Ratings Unit
Power supply voltage (VCC) VCC 0.3 to +4.0 V
Power supply voltage (VCCCOMP) VCCCOMP 0.3 to +5.5 V
Pin voltage VT 0.3 to VCC + 0.3 (6.0 Max) V
Maximum power dissipation PT 400 mW
Operating temperature Topr 20 to +85 °C
Storage temperature Tstg 55 to +125 °C



Description

The HD155111F was developed for PCN (DCS1800) cellular systems, and integrates most of the functions of a transceiver. The HD155111F incorporates the bias circuit for a RF LNA, a 1st mixer, 1st-IF amplifier, 2nd mixer, AGC amplifier and an IQ quadrature demodulator for the receiver, and an IQ quadrature modulator and offset PLL for the transmitter. Also, on chip are the dividers for the 1st & 2nd local oscillator signals and 90° phase splitter. Moreover the HD155111F includes control circuits to implement power saving modes. These functions can operate down to 2.7 V and are housed in a 48-pin LQFP SMD package.

Hence the HD155111F can form a small size transceiver handset for PCN by adding a PLL frequency synthesizer IC, a power amplifier and some external components. See page 7 "Configuration".

The HD155111F is fabricated using a 0.6 mm double-polysilicon Bi-CMOS process.
