Product Details

Description

Pinout

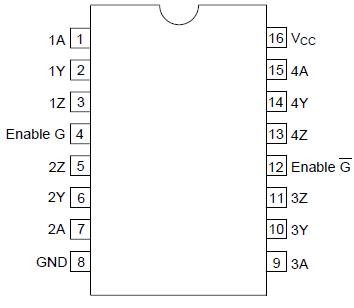

Connection Diagram

Specifications

CHARACTERISTIC	SYMBOL	VALUE	UNIT
Supply Voltage	V_cc	7.0	V
Input Voltage	V_IN	7.0	V
Output Voltage	V_OUT	5.5	V
Power Dissipation	P_T	1	W
Operating Temperature	T_opr	0 to +70
Storage Temperature	T_str	65 to +150

Description

The HD26LS31 features quadruple differential line drivers which satisfy the requirements of EIA standard RS-422A. This device is designed to provide differential signals with high current capability on bus lines. The HD26LS31 circuit provides enable input to control all four drivers. The output circuit has active pull up and pull down and is capable of sinking or sourcing 40 mA.
