General Description
HD26LS32 General Description
The HD26LS32 features quadruple line receivers designed to meet the specs of EIA standard RS-422A and RS-423. This device operates from a single 5 V power supply. The enable function is common to all four receivers and offers a choice of active high or active low input. Fail safe design ensures that if the inputs are open, the outputs will always be high.
HD26LS32 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
| Supply Voltage |
VCC*1 |
7.0 |
V |
| In Phase Input Voltage |
VIC |
±25 |
V |
| Differential Input Voltage |
VID*2 |
±25 |
V |
| Enable Input Voltage |
VIN |
7 |
V |
| Output Sink Current |
Iout |
50 |
mA |
| Continuous Total Dissipation |
PT |
1 |
W |
| Operating Temperature Range |
Topr |
0 to +70 |
|
| Storage Temperature Range |
Tstg |
65 to 150 |
Notes: 1. All voltage values except for differential input voltage are with respect to network ground terminal.
2. Differential input voltage is measured at the noninverting input with respect to the corresponding inverting onput.
3. The absolute maximum ratings are values which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.

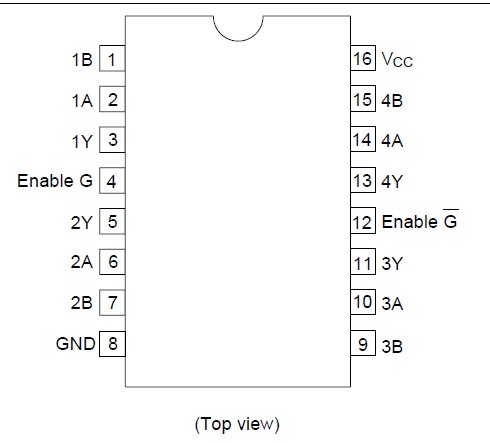

HD26LS32 Connection Diagram
HD26LS32P
PDF/DataSheet Download
- Datasheet: HD26LS32P
- File Size: 69756 KB
- Manufacturer: Hitachi Semiconductor
- Click here to Download
