Description: The HD61203U is a common signal driver for dot matrix liquid crystal graphic display systems. It generates the timing s...
- Table of contents:
HD61203U
-
Suppliers
DataSheet
General Description
HD61203U General Description
The HD61203U is a common signal driver for dot matrix liquid crystal graphic display systems. It generates the timing signals (switch signal to convert LCD waveform to AC, frame synchronous signal) and supplies them to the column driver to control display. It provides 64 driver output lines and the impedance is low enough to drive a large screen.
As the HD61203U is produced by a CMOS process, it is fit for use in portable battery-driven equipment utilizing the liquid crystal display's low power consumption. The user can easily construct a dot matrix liquid crystal graphic display system by combining the HD61203U and the column (segment) driver HD61202U.
HD61203U Maximum Ratings
| Item | Symbol | Limit | Unit | Notes |
| Power supply voltage (1) | VCC | 0.3 to +7.0 | V | 2 |
| Power supply voltage (2) | VEE | VCC 17.0 to VCC + 0.3 | V | 5 |
| Terminal voltage (1) | VT1 | 0.3 to VCC + 0.3 | V | 2, 3 |
| Terminal voltage (2) | VT2 | VEE 0.3 to VCC + 0.3 | V | 4, 5 |
| Operating temperature | Topr | 30 to +75 | °C | |
| Storage temperature | Tstg | 55 to +125 | °C |
HD61203U Features
· Dot matrix liquid crystal graphic display common driver with low impedance
· Low impedance: 1.5 kW max
· Internal liquid crystal display driver circuit: 64 circuits
· Internal dynamic display timing generator circuit
· Display duty cycle When used with the column driver HD61202U: 1/48, 1/64, 1/96, 1/128 When used with the controller HD61830: Selectable out of 1/32 to 1/128
· Low power dissipation: During displays: 5 mW
· Power supplies: VCC: 2.7~5.5V
· Power supply voltage for liquid crystal display drive: 8V to 16V
· CMOS process
· 100-pin plastic QFP, 100-pin plastic TQFP, chip
· Low impedance: 1.5 kW max
· Internal liquid crystal display driver circuit: 64 circuits
· Internal dynamic display timing generator circuit
· Display duty cycle When used with the column driver HD61202U: 1/48, 1/64, 1/96, 1/128 When used with the controller HD61830: Selectable out of 1/32 to 1/128
· Low power dissipation: During displays: 5 mW
· Power supplies: VCC: 2.7~5.5V
· Power supply voltage for liquid crystal display drive: 8V to 16V
· CMOS process
· 100-pin plastic QFP, 100-pin plastic TQFP, chip

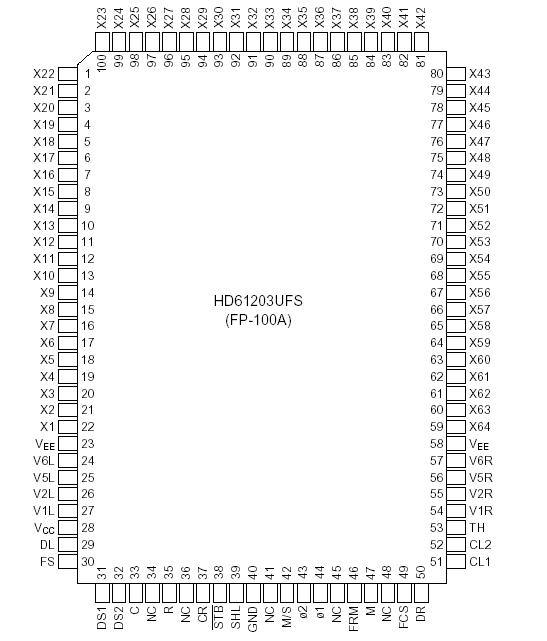

HD61203U Connection Diagram
HD61203U
PDF/DataSheet Download
- Datasheet: HD61203U
- File Size: 97430 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
