HD6473048 Maximum Ratings
HD6473048 Features
Upward-compatible with the H8/300 CPU at the object-code level
General-register machine
• Sixteen 16-bit general registers
(also usable as + eight 16-bit registers or eight 32-bit registers)
High-speed operation (flash memory version)
• Maximum clock rate: 16 MHz
• Add/subtract: 125 ns
• Multiply/divide: 875 ns
High-speed operation (masked ROM and PROM versions)
• Maximum clock rate: 18 MHz
• Add/subtract: 111 ns
• Multiply/divide: 778 ns
16-Mbyte address space
Instruction features
• 8/16/32-bit data transfer, arithmetic, and logic instructions
• Signed and unsigned multiply instructions (8 bits × 8 bits, 16 bits × 16 bits)
• Signed and unsigned divide instructions (16 bits ÷ 8 bits, 32 bits ÷ 16 bits)
• Bit accumulator function
• Bit manipulation instructions with register-indirect specification of bit positions
H8/3048
• ROM: 128 kbytes
• RAM: 4 kbytes
H8/3047
• ROM: 96 kbytes
• RAM: 4 kbytes
H8/3045
• ROM: 64 kbytes
• RAM: 2 kbytes
H8/3044
• ROM: 32 kbytes
• RAM: 2 kbytes
• Seven external interrupt pins: NMI, IRQ0 to IRQ5
• 30 internal interrupts
• Three selectable interrupt priority levels
• Address space can be partitioned into eight areas, with independent bus specifications in each area
• Chip select output available for areas 0 to 7
• 8-bit access or 16-bit access selectable for each area
• Two-state or three-state access selectable for each area
• Selection of four wait modes
• Bus arbitration function
DRAM refresh
controller
• Directly connectable to 16-bit-wide DRAM
• CAS-before-RAS refresh
• Self-refresh mode selectable
Pseudo-static RAM refresh
• Self-refresh mode selectable
Short address mode
• Maximum four channels available
• Selection of I/O mode, idle mode, or repeat mode
• Can be activated by compare match/input capture A interrupts from ITU
channels 0 to 3, transmit-data-empty and receive-data-full interrupts from SCI
channel 0, or external requests
Full address mode
• Maximum two channels available
• Selection of normal mode or block transfer mode
• Can be activated by compare match/input capture A interrupts from ITU
channels 0 to 3, external requests, or auto-request
Usable as an interval timer
• Five 16-bit timer channels, capable of processing up to 12 pulse outputs or 10 pulse inputs
• 16-bit timer counter (channels 0 to 4)
• Two multiplexed output compare/input capture pins (channels 0 to 4)
• Operation can be synchronized (channels 0 to 4)
• PWM mode available (channels 0 to 4)
• Phase counting mode available (channel 2)
• Buffering available (channels 3 and 4)
• Reset-synchronized PWM mode available (channels 3 and 4)
• Complementary PWM mode available (channels 3 and 4)
• DMAC can be activated by compare match/input capture A interrupts (channels 0 to 3)

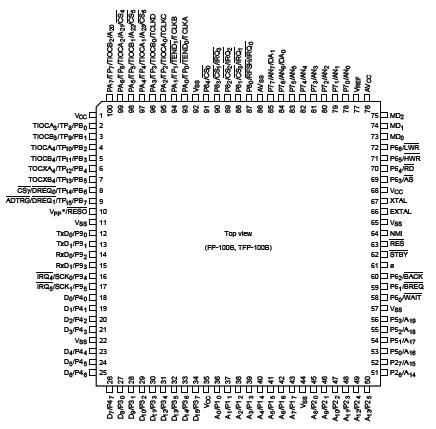

HD6473048 Connection Diagram
