HD66137T

Features: • Display duty: Up to 1/240• LCD drive voltage: 43 V max• Built-in switching circuit (to generate 21.5 V)• Number of LCD drive circuit: 240• Operating voltage: 2.5 to 5.5 V• Intermediate voltage I/F• Built-in alternating signal generation circuit...

product image

HD66137T Picture
See larger image
SeekIC No. : 004360400 Detail

HD66137T: Features: • Display duty: Up to 1/240• LCD drive voltage: 43 V max• Built-in switching circuit (to generate 21.5 V)• Number of LCD drive circuit: 240• Operating voltage...

HD66137T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD66137T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  Display duty: Up to 1/240
•  LCD drive voltage: 43 V max
•  Built-in switching circuit (to generate 21.5 V)
•  Number of LCD drive circuit: 240
•  Operating voltage: 2.5 to 5.5 V
•  Intermediate voltage I/F
•  Built-in alternating signal generation circuit Pin programmable
•  Output mode change: 240-output mode200-output mode160-output mode
•  Built-in display-off function
•  Flex TCP


Pinout

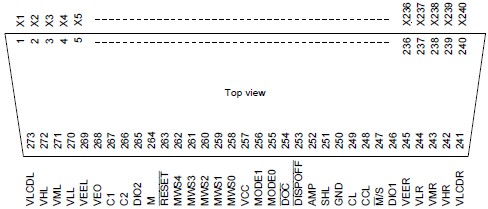

Connection Diagram


Specifications

Power supply Logiccircuit
voltage LCD drive circuit

Symbol

Ratings

Unit

Notes

VCC

0.3 to +7.0

V

1, 8

VLCD

0.3 to +25.0

V

1, 3, 8

VEE

20.0 to +0.3

V

1, 4, 8

Input voltage (1)

VT1

0.3 to VCC + 0.3

V

1, 2

Input voltage (2)

VH

0.3 to VLCD

V

1, 5, 8

Input voltage (3)

VL

+0.3 to VEE

V

1, 6, 8

Input voltage (4)

VM

0.3 to + 5.0

V

1, 7, 8

Operating temperature

Topr

30 to +75

°C



Storage temperature

Tstg

55 to +110

°C






Description

The HD66137T is a 240-channel common driver which drives a dot matrix STN LCD panel.  By changingthe mode, this can be applied to 240- and 200- and 160- channel output.  Through the use of a 43-V high-voltage CMOS process technology, a high-voltage drive of +21.5 V and 21.5 V, centering on VM ispossible.  21.5V generated from +21.5 V with built-in switching circuit and external capacity.  Low logic-drive voltage (3 V) is used.  This HD66137T is used together with the segment driver HD66130, HD66134ST orHD66136.
