HD74AC112

Features:

·  Outputs Source/Sink 24 mA
·  HD74ACT112 has TTL-Compatible Inputs


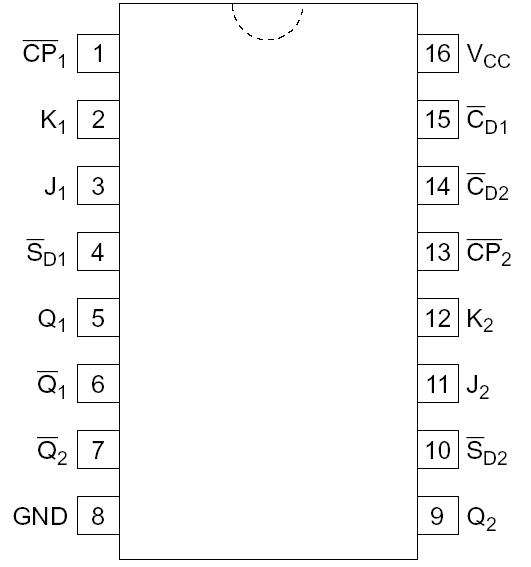

Pinout




Specifications

Item	Symbol	Max	Unit	Condition
Maximum quiescent supply current	ICC	80	A	VIN = VCC or ground, VCC = 5.5 V, Ta = Worst case
Maximum quiescent supply current	ICC	8.0	A	VIN = VCC or ground, VCC = 5.5 V, Ta = 25°C
Maximum ICC/input (HD74ACT365)	ICCT	1.5	mA	VIN = VCC 2.1 V, VCC = 5.5 V, Ta = Worst case

Description

The HD74AC112/HD74ACT112 features individual J, K, Clock and asynchronous Set and Clear inputs to each flip-flop. When the clock goes High, the inputs of HD74AC112/HD74ACT112 are enabled and data will be accepted. The logic level of the J and K inputs may change when the clock is High and the bistable will perform according to the Truth Table as long as minimum setup and hold times are observed. Input data is transferred to the outputs on the falling edge of the clock pulse.
