Product Details

Description



Features:

·  High Speed Operation: tpd = 7.5 ns typ (CL = 50 pF)
·  High Output Current: Fanout of 10 LSTTL Loads
·  Wide Operating Voltage: VCC = 2 to 6 V
·  Low Input Current: 1 µA max
·  Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C)



Pinout

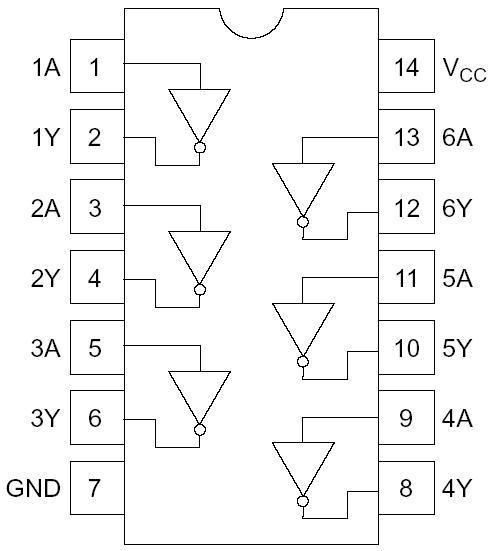

  Connection Diagram


Specifications

Item Symbol Typ Unit Condition
Input capacitance CIN 4.5 pF VCC = 5.5 V
Power dissipation capacitance CPD 25.0 pF VCC = 5.0 V
