Part Number: HD74HCT1G04
Description: The HD74HCT1G04 is high speed CMOS inverter using silicon gate CMOS process. With CMOS low power dissi...
- Table of contents:
HD74HCT1G04
-
Suppliers
DataSheet
General Description
HD74HCT1G04 General Description
The HD74HCT1G04 is high speed CMOS inverter using silicon gate CMOS process. With CMOS low power dissipation, it provides high speed equivalent to LSTTL series. The internal circuit of three stages construction with buffer provides wide noise margin and stable output.
HD74HCT1G04 Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
Test Conditions |
| Supply voltage range |
VCC |
0.5 to 7.0 |
V |
|
| Input voltage range *1 |
VI |
0.5 to VCC + 0.5 |
V |
|
| Output voltage range *1, 2 |
VO |
0.5 to VCC + 0.5 |
V |
Output : H or L |
| Input clamp current |
IIK |
±20 |
mA |
VI < 0 or VI > VCC |
| Output clamp current |
IOK |
±20 |
mA |
VO < 0 or VO >VCC |
| Continuous output current |
IO |
±25 |
mA |
VO = 0 to VCC |
| Continuous current through VCC or GND |
ICC or IGND |
±25 |
mA |
|
| Maximum power dissipation at Ta = 25 (in still air) *3 |
PT |
200 |
mW |
|
| Storage temperature |
Tstg |
65 to 150 |
Notes: The absolute maximum ratings are values which must not individually be exceeded, and urthermore, no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current atings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was caluculated using a junction temperature of
150°.
HD74HCT1G04 Features
` The basic gate function is lined up as hitachi uni logic series.
` Supplied on emboss taping for high speed automatic mounting.
` TTL compatible input level. Supply voltage range : 4.5 to 5.5 V Operating temperature range : 40 to +85
` |IOH| = IOL = 2 mA (min)

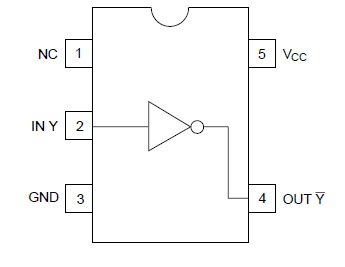

HD74HCT1G04 Connection Diagram
HD74HCT1G04
