Product Details

Description

Features:

` LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility
` High Speed Operation: tpd (A to Y) = 10 ns typ (CL = 50 pF)
` High Output Current: Fanout of 15 LSTTL Loads
` Wide Operating Voltage: V_CC = 4.5 to 5.5 V
` Low Input Current: 1 A max
` Low Quiescent Supply Current: ICC (static) = 4 A max (Ta = 25°C)

Pinout

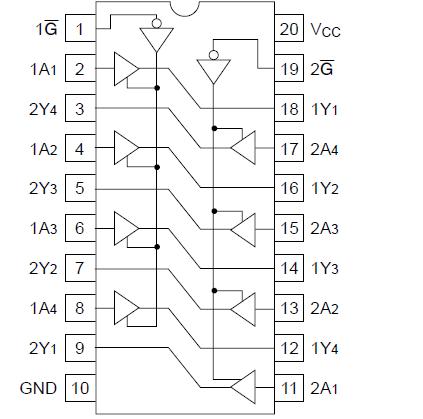

Connection Diagram

Specifications

Item	Symbol	Rating	Unit
Supply voltage range	V_CC	0.5 to +7.0	V
Input voltage	V_IN	0.5 to V_CC + 0.5	V
Output voltage	V_OUT	0.5 to V_CC + 0.5	V
DC current drain per pin	I_OUT	±35	mA
DC current drain per VCC, GND	I_CC, I_GND	±75	mA
DC input diode current	I_IK	±20	mA
DC output diode current	I_OK	±20	mA
Power dissipation per package	P_T	500	mW
Storage temperature	T_stg	65 to +150	°C

Description

The HD74HCT244 is a non-inverting buffer and has two active low enable (1G and 2G ). Each enable independently controls 4 buffers.

HD74HCT244 does not have schmitt trigger inputs.
