Product Details

Description



Features:

·  VCC = 2.0 V to 5.5 V operation
·  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
·  All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C)
·  Output current ±8 mA (@VCC = 3.0 V to 3.6 V), ±16 mA (@VCC = 4.5 V to 5.5 V)


Pinout

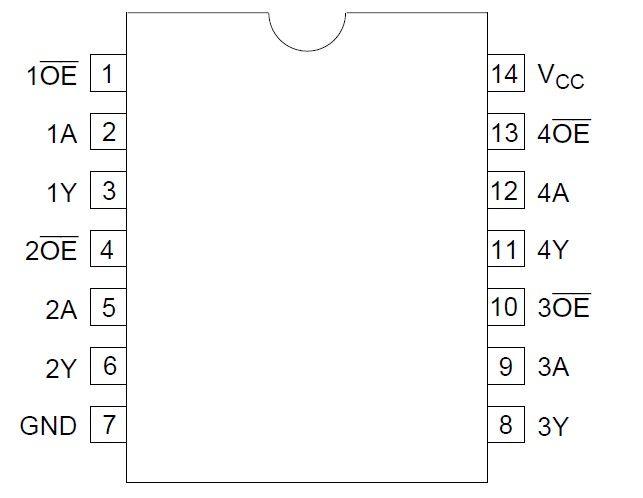

Connection Diagram


Specifications

Item Symbol Ratings Unit Conditions
Supply voltage range
Input voltage range*1		 VCC
VI		 0.5 to 7.0
0.5 to 7.0		 V
V
Output voltage range*1, 2 VO 0.5 to VCC + 0.5
0.5 to 7.0		 V Output: H or L
VCC: OFF or Output: Z
Input clamp current
Output clamp current
Continuous output current
Continuous current through
VCC or GND		 IIK
IOK
IO
ICC or IGND		 20
±50
±35
±70		 mA
mA
mA
mA		 VI < 0
VO < 0 or VO > VCC
VO = 0 to VCC
Maximum power dissipation
at Ta = 25°C (in still air)*3		 PT 785
500		 mW SOP
TSSOP
Storage temperature Tstg 65 to 150 °C



Description

The HD74LV125A features independent line drivers with three state outputs. Each output is disabled when the associated output enable (OE) input is high. To ensure the high impedance state during power up or power down, OE should be connected to VCC through a pull-down resistor; the minimum value of the resistor is determined by the current souring capability of the driver. Low-voltage and high-speed operation of HD74LV125A is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life.
