Part Number: HD74LV2G245A
Description: The HD74LV2G245A has two buffers with three state output in an 8 pin package. When DIR is high, data i...
- Table of contents:
HD74LV2G245A
-
Suppliers
DataSheet
General Description
HD74LV2G245A General Description
The HD74LV2G245A has two buffers with three state output in an 8 pin package. When DIR is high, data is transferred from the A inputs to the B outputs, and when DIR is low, data is transferred from the B inputs to the A outputs. The A and B buses are separated by making the enable input (OE) high level. Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
HD74LV2G245A Maximum Ratings
| Item | Symbol | Ratings | Unit | Test Conditi |
| Supply voltage range | VCC | 0.5 to 7.0 | V | |
| Input voltage range *1 | VI | 0.5 to 7.0 | V | |
| Output voltage range *1, 2 | VO | 0.5 to VCC + 0.5 | V | Output : H or L |
| 0.5 to 7.0 | VCC : OFF | |||
| Input clamp current | IIK | -20 | mA | VI < 0 |
| Output clamp current | IOK | ±50 | mA | VO < 0 or VO > VCC |
| Continuous output current | IO | ±25 | mA | VO = 0 to V |
| Continuous current through VCC or GND |
ICC or Land | ±50 | mA | |
| Maximum power dissipation at Ta = 25°C (in still air) *3 |
PT | 200 | mW | |
| Storage temperature | TSTG | 65 to 150 | °C |
furthermore no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current
ratings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150°C.
HD74LV2G245A Features
• The basic gate function is lined up as Renesas uni logic series.
• Supplied on emboss taping for high-speed automatic mounting.
• Electrical characteristics equivalent to the HD74LV245A
Supply voltage range : 1.65 to 5.5 V
Operating temperature range : 40 to +85°C
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
All outputs VO (Max.) = 5.5 V (@VCC = 0 V, Output : Z)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)
• All the logical input has hysteresis voltage for the slow transition.
• Ordering Information
• Supplied on emboss taping for high-speed automatic mounting.
• Electrical characteristics equivalent to the HD74LV245A
Supply voltage range : 1.65 to 5.5 V
Operating temperature range : 40 to +85°C
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
All outputs VO (Max.) = 5.5 V (@VCC = 0 V, Output : Z)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)
• All the logical input has hysteresis voltage for the slow transition.
• Ordering Information

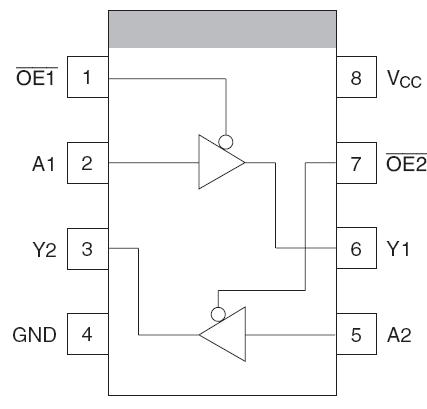

HD74LV2G245A Connection Diagram
HD74LV2G245A
PDF/DataSheet Download
- Datasheet: HD74LV2G245A
- File Size: 103178 KB
- Manufacturer: RENESAS [Renesas Technology Corp]
- Click here to Download
