HEDS-1500

Optical Switches, Reflective, with Photo IC Output PRECISION OPT. REFLE CTIVE SENSOR

product image

HEDS-1500 Picture
SeekIC No. : 0084647 Detail

HEDS-1500: Optical Switches, Reflective, with Photo IC Output PRECISION OPT. REFLE CTIVE SENSOR

floor Price/Ceiling Price

Part Number:
HEDS-1500
Mfg:
Avago Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2021/1/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Series: -
Sensing Method: Reflective
Voltage - Collector Emitter Breakdown (Max): -
Current - Collector (Ic) (Max): -
Current - DC Forward (If): 50mA
Response Time: -
Mounting Type: Through Hole
Packaging: Bulk
Output Type: Photodiode
Manufacturer: Lite-On Inc
Sensing Distance: 0.168" (4.27mm)
Package / Case: TO-5


Features:

• Focused Emitter and Detector in a Single Package
• 655 nm Visible Emitter
• 0.178 mm (0.007) Resolution
• TO-5 Miniature Sealed Package
• Photodiode Output



Application

Applications for the HEDS-1500 include bar code scanning, pattern recognition and verification, object sizing, optical limit switching, tachometry, textile thread counting and defect detection, dimensional monitoring, line locating, paper edge detection, and any application where precision optical reflective sensing is desired.

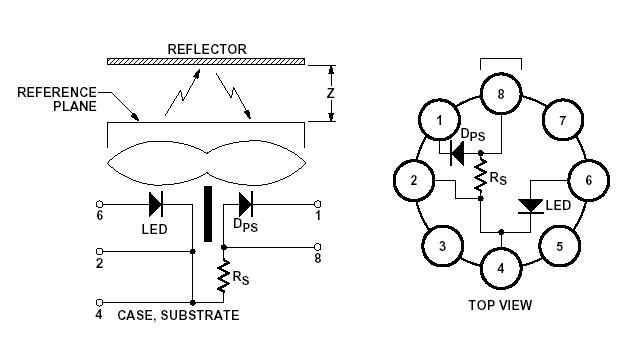

Pinout

  Connection Diagram


Specifications

Parameter Symbol Min. Max. Units Note
Operating Temperature TA -20 70 °C
Storage Temperature TS -40 75 °C
Lead Soldering Temperature     260 for 10 sec. °C 1
Average LED Forward Current If   50 mA
Peak LED Forward Current Ifp   (data pending)   2
Reverse LED Input Voltage Vr   5 V
Photodiode Bias (-V = forward bias) Vd -0.3 7 V 3



Description

The HEDS-1500 is a fully integrated module designed for applications requiring optical reflective sensing. The module contains a 655 nm visible LED emitter and a matched I.C. photodetector.

A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a single spot 4.27 mm (0.168 in.) in front of the package. The output signal of HEDS-1500 is a current generated by the photodiode.


Parameters:

Technical/Catalog InformationHEDS-1500
VendorLite-On Inc
CategorySensors, Transducers
Sensing Distance0.168" (4.27mm)
Sensing MethodReflective
Output TypePhototransistor
Voltage - Collector Emitter Breakdown (Max)-
Current - Collector (Ic) (Max)-
Current - DC Forward (If)50mA
Response Time-
Operating Temperature-20°C ~ 70°C
FeaturesFocused Emitter and Detector
Mounting TypeThrough Hole
Package / CaseTO-5
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names HEDS 1500
HEDS1500
516 1270 ND
5161270ND
516-1270
