HEDS-1200

Features:

• Focused Emitter and Detector in a Single Package
• TO5 Package
• Binning of Sensors by Photocurrent (Ipr)


Application

• Bar Code Scanning
• Pattern Recognition and Verification
• Object Sizing
• Optical Limit Switching
• Optical/Surface Inspection
• Tachometry
• Edge/Line Sensing
• Dimensional Monitoring

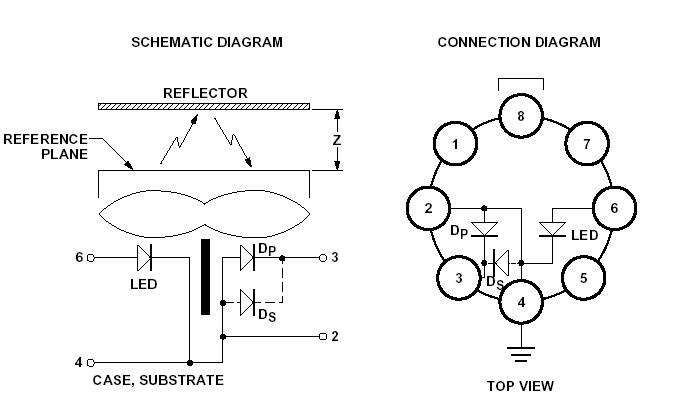

Pinout




Specifications

Parameter	Symbol	HEDS-	Min.	Max.	Units	Fig.	Notes
Storage Temperature	Ts	1200	-40	+75	°C
		1300	-40	+75	°C
Operating Temperature	TA	1200	-20	+70	°C
		1300	-20	+70	°C
Lead Soldering Temperature 1.6 mm from Seating Plane		1200		260°C for 10 sec.			1
		1300					1
Average LED Forward Current	If	1200	10	40	mA		3
		1300		50	mA		2
Peak LED Forward Current	Ifpk	1200		40	mA	7	4
		1300		75	mA	7	4
Reverse LED Input Voltage	Vr	1200		2.5	V
		1300		5.0	V
Photodiode Bias (Id = 100 mA max)	Vd	1200	-0.3	20	V		5
		1300	-0.3	20	V		5

Description

Both the HEDS-1200 and HEDS-1300 sensor are fully integrated modules designed for applications requiring optical reflective sensing. The modules contain an LED emitter (at the appropriate wavelengths) and a matched I.C. photodetector.

A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a single spot that defines the resolution of the sensor. The output signal of HEDS-1200 is a current generated by the photodiode.
