HFA08SD60S

Product : Ultra Fast Recovery Rectifiers
Reverse Voltage : 600 V
Mounting Style : SMD/SMT
Configuration : Single
Forward Continuous Current : 8 A
Package / Case : DPAK
Reverse Current IR : 5 uA
Packaging : Tube
Max Surge Current : 60 A
Recovery Time : 55 ns
Forward Voltage Drop : 2.1 V at 16 A


Features:

• Ultrafast Recovery Time
• Ultrasoft Recovery
• Very Low IRRM
• Very Low Qrr
• Guaranteed Avalanche
• Specified at Operating Temperature


Application

• Reduced RFI and EMI
• Reduced Power Loss in Diode and Switching Transistor
• Higher Frequency Operation
• Reduced Snubbing
• Reduced Parts Count

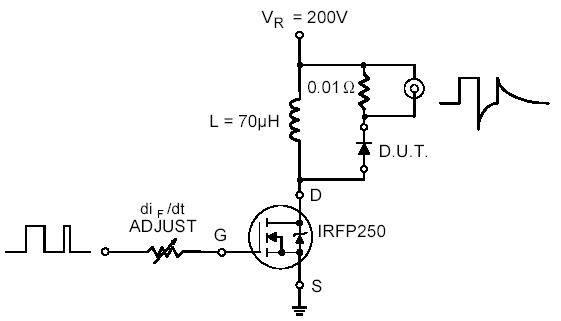

Pinout




Specifications

Parameters		Max	Units
VRRM	Cathode-to-Anode Voltage	600	V
IF(AV)	Continuous Forward Current TC = 100°C	8	A
IFSM	Single Pulse Forward Current	60	A
IFRM	Peak Repetitive Forward Current	24	A
PD	Maximum Power Dissipation TC = 100°C	14	W
TJ, TSTG	Operating Junction and Storage Temperatures	- 55 to 150	°C

Description

These HFA08SD60S diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These HFA08SD60S devices are ideally suited for freewheeling, flyback, power converters, motor drives, and other applications where high speed and reduced switching losses are design requirements.
