Part Number: HFA320NJ40C



MFG: N/A

Package Cooled: NA/

D/C: 09+

Description: HEXFREDTM diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive ...


Urgent Purchase

HFA320NJ40C General Description


HEXFREDTM diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.

HFA320NJ40C Maximum Ratings

  Parameters Max Units
VR Cathode-to-Anode Voltage 400 V
IF @ TC = 25°C Continuous Forward Current 321
IF @ TC = 100°C Continuous Forward Current 160 A
IFSM Single Pulse Forward Current 1200 A
EAS Maximum Repetitive Forward Current 1.4 mj
PD @ TC = 25°C Maximum Power Dissipation 625 W
PD @ TC = 100°C Maximum Power Dissipation 250 W
TJ, TSTG Operating Junction and Storage Temperatures - 55 to 150 °C

HFA320NJ40C Features

·Reduced RFI and EMI
·Reduced Snubbing
·Extensive Characterization of
·Recovery Parameters

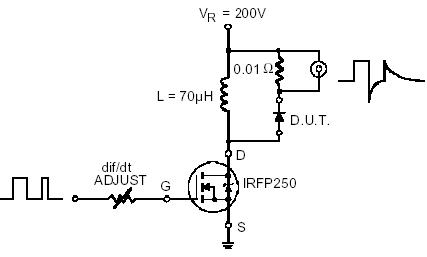

HFA320NJ40C Connection Diagram

HFA320NJ40C Connection Diagram

HFA320NJ40C datasheet

HFA320NJ40C
PDF/DataSheet Download
