HFBR-1119T

Packaging : Tube
Product : Transmitters
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Data Rate : 266 MBd
Wavelength : 1300 nm
Package / Case : DIP-16 with Connector


Features:

• Full Compliance with the Optical Performance Requirements of the Fibre Channel Physical Layer
• Other Versions Available for:
- FDDI
- ATM
• Compact 16-pin DIP Package with Plastic ST* Connector
• Wave Solder and Aqueous Wash Process Compatible Package
• Manufactured in an ISO 9001 Certified Facility


Application

• Fibre Channel Interfaces
• Multimode Fiber Optic Links up to 266 MBd at 1500 m
• General Purpose, Point-to- Point Data Communications
• Replaces DLT/R1040-ST2 Model Transmitters and Receivers

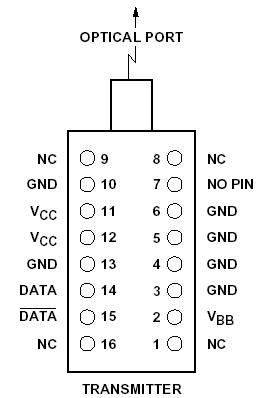

Pinout




Specifications

Parameter	Symbol	Min	Typ.	Max	Unit	Notes
Storage Temperature	TS	-40		100	°C
Lead Soldering Temperature	TSOLD			260	°C
Lead Soldering Time	tSOLD			10	sec.
Supply Voltage	VCC	-0.5		7.0	V
Data Input Voltage	VI	-0.5		VCC	V
Differential Input Voltage	VD			1.4	V	Note 1
Output Current	IO			50	mA	Note 2

Description

The HFBR-1119/-2119 series data links are high-performance, cost-efficient, transmitter and receiver modules for serial optical data communication applications specified at 266 MBd for Fibre Channel applications or for general-purpose fiber optic data link transmission. These modules are designed for 50 or 62.5 mm core multimode optical fiber and operate at a nominal wavelength of 1300 nm. They incorporate our highperformance, reliable, longwavelength, optical devices and proven circuit technology to give long life and consistent performance.
