Part Number: HFBR-24xx









Description: The HFBR-0400 Series of components is designed to provide cost effective, high performance fiber optic...


Urgent Purchase

HFBR-24xx General Description


The HFBR-0400 Series of components is designed to provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 2.7 kilometers. With the HFBR-24x6, the 125 MHz analog receiver, data rates of up to 160 megabaud are attainable.

Transmitters and receivers are directly compatible with popular "industry-standard" connectors: ST®, SMA, SC and FC. They are completely specified with multiple fiber sizes; including 50/125 µm, 62.5/125 µm, 100/ 140 µm, and 200 µm.

The HFBR-14x4 high power transmitter and HFBR-24x6 125 MHz receiver pair up to provide a duplex solution optimized for 100 Base-SX. 100Base-SX is a Fast Ethernet Standard (100 Mbps) at 850 nm on multimode fiber.

Complete evaluation kits are available for ST product offerings; including transmitter, receiver, connectored cable, and technical literature. In addition, ST connectored cables are available for evaluation.

HFBR-24xx Maximum Ratings

Parameter Symbol Min Max Units Reference
Storage Temperature TS -55 +85
Operating
Temperature		 TA -40 +85
Lead Soldering Cycle
  Temp
  Time		     +260
10
sec
Forward Input Current
  Peak
  dc		 IFPK
IFdc		   200
100		 mA
V		 Note 1
Reverse Input Voltage VBR   1.8 V

HFBR-24xx Features

• Meets IEEE 802.3 Ethernet and
   802.5 Token Ring Standards
• Meets TIA/EIA-785 100Base-SX
   standard
• Low Cost Transmitters and
   Receivers
• Choice of ST®, SMA, SC or FC
   Ports
• 820 nm Wavelength Technology
• Signal Rates up to 160 MBd
• Link Distances up to 2.7 km
• Specified with 50/125 µm, 62.5/
   125 µm, 100/140 µm, and 200 µm
   HCS® Fiber
• Repeatable ST Connections within
   0.2 dB Typical
• Unique Optical Port Design for
   Efficient Coupling
• Auto-Insertable and Wave
   Solderable
• No Board Mounting Hardware
   Required
• Wide Operating Temperature
   Range -40  to +85
• AlGaAs Emitters 100% Burn-In
   Ensures High Reliability
• Conductive Port Option

HFBR-24xx Typical Application

• 100Base-SX Fast Ethernet on 850
   nm
• Media/fiber conversion, switches,
   routers, hubs and NICs on
   100Base-SX
• Local Area Networks
• Computer to Peripheral Links
• Computer Monitor Links
• Digital Cross Connect Links
• Central Office Switch/PBX Links
• Video Links
• Modems and Multiplexers
• Suitable for Tempest Systems
• Industrial Control Links

HFBR-24xx datasheet

HFB06PB120
PDF/DataSheet Download

Find HFBR-24xx Suppliers

  • ·HFB06TB120
  • IRF [International Rectifier]
  • Ultrafast, Soft Recovery Diode
  • 153842 KB
  • HFB06TB120 Datasheet Download
  • ·HFB08PB120
  • IRF [International Rectifier]
  • Ultrafast, Soft Recovery Diode
  • 178575 KB
  • HFB08PB120 Datasheet Download
  • ·HFB08TB120
  • IRF [International Rectifier]
  • Ultrafast, Soft Recovery Diode
  • 133492 KB
  • HFB08TB120 Datasheet Download
  • ·HFB16HY20C
  • IRF [International Rectifier]
  • Ultrafast, Soft Recovery Diode
  • 212547 KB
  • HFB16HY20C Datasheet Download
  • ·HFB16HY20CC
  •
  • FRED Ultrafast, Soft Recovery Diode
  • 109779 KB
  • HFB16HY20CC Datasheet Download
  • ·HFB16PA60C
  • IRF [International Rectifier]
  • Ultrafast, Soft Recovery Diode
  • 170023 KB
  • HFB16PA60C Datasheet Download
  • ·HFB20HJ20C
  • IRF [International Rectifier]
  • Ultrafast, Soft Recovery Diode
  • 125682 KB
  • HFB20HJ20C Datasheet Download
  • ·HFB25HJ20
  • IRF [International Rectifier]
  • Ultrafast, Soft Recovery Diode
  • 125086 KB
  • HFB25HJ20 Datasheet Download

Related Part Number

HFBR-24xx Relative Products

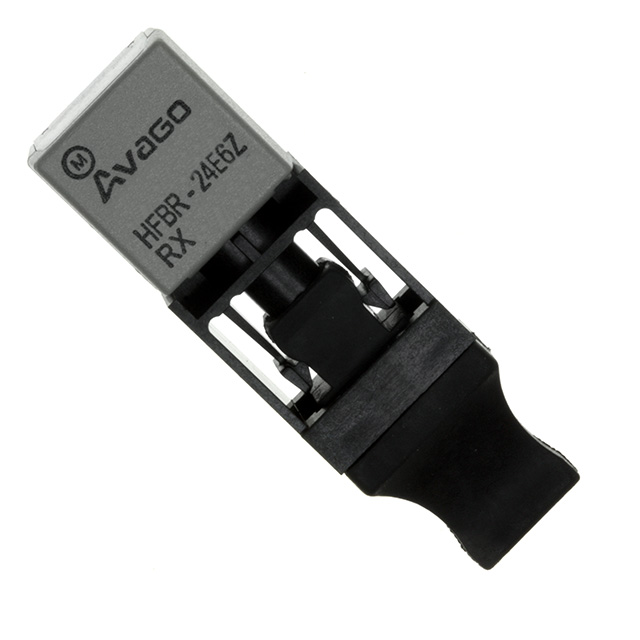

  • HFBR-24E6Z
