Product Details

Description



Features:

• Full Compliance with ANSI X3T11 Fibre Channel Physical and Signaling Interface
• Multisourced 1x9 Package Style with Duplex SC Connector
• Wave Solder and Aqueous Wash Process Compatibility
• Compatible with Various Manufacturers FC-0 and FC-1 Circuits


Application

• Fibre Channel 12.5 MB/s 12-M6-LE-I Interfaces for 1300 nm LED Links to 1500 m
• Fibre Channel 25 MB/s 25-M6-LE-I Interfaces for 1300 nm LED Links to 1500 m


Pinout

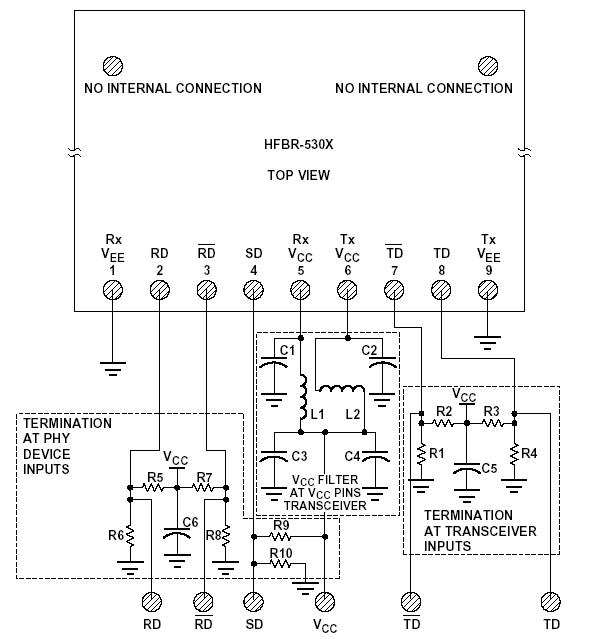

Connection Diagram


Specifications

Parameter Symbol Min Typ. Max Unit Notes
Storage Temperature TS -40   100 °C
Lead Soldering Temperature TSOLD     260 °C
Lead Soldering Time tSOLD     10 sec.
Supply Voltage VCC -0.5   7.0 V
Data Input Voltage VI -0.5   VCC V
Differential Input Voltage VD     1.4 V Note 1
Output Current IO     50 mA



Description

The HFBR-5301 and HFBR-5302 Fibre Channel Transceivers from Hewlett-Packard provide the system designer with products to implement Fibre Channel designs for use in multimode fiber (MMF) applications. These include the 12.5 MB/sec 12-M6-LE-I interface and the 25 MB/sec 25-M6-LE-I interface for 1300 nm LED links.

The HFBR-5301 and HFBR-5302  products are produced in the new industry standard 1x9 SIP package style with a duplex SC connector interface as defined in the Fiber Channel ANSI FC-PH standard document.

In the HFBR-5301 and HFBR-5302  series, the HFBR-5301 is a 1300 nm transceiver specified for use in 133 MBd, 12.5 MB/s, 12-M6-LE-I Fibre Channel interfaces to either 62.5/125 mm or 50/125 mm multimode fiber-optic cables. The HFBR-5302 is a 1300 nm transceiver specified for use in 266 MBd, 25 MB/s, 25-M6-LE-I Fibre Channel interfaces to either 62.5/125 mm or 50/125 mm multimode fiber-optic cables.
