HFBR-5905

Features:

• Multisourced 2 x 5 package style with MT-RJ receptacle
• Single +3.3 V power supply
• Wave solder and aqueous wash process compatibility
• Manufactured in an ISO 9002 certified facility
• Full compliance with ATM Forum UNI SONET OC-3 multimode fiber physical layer specification


Application

• Multimode fiber ATM backbone links
• Multimode fiber ATM wiring closet to desktop links

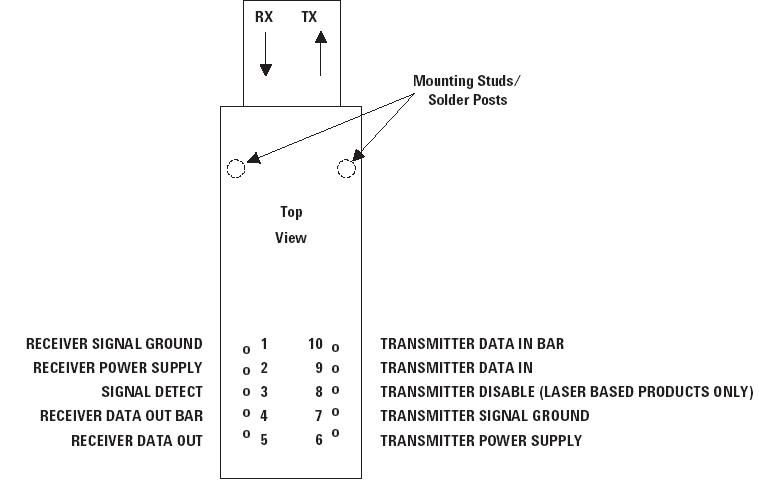

Pinout




Specifications

Parameter	Symbol	Mini	Typ	Max	Unit	Notes
Storage Temperature	TS	-40		+100	°C
Lead Soldering Temperature	TSOLD			+260	°C
Lead Soldering Time	tSOLD			10	sec.
Supply Voltage	VCC	-0.5		3.6	V
Data Input Voltage	VI	-0.5		VCC	V
Differential Input Voltage	VD			2.0	V	Note 1
Output Current	IO			50	mA

Description

The HFBR-5900 family of transceivers from Agilent provide the system designer with products to implement a range of solutions for multimode fiber SONET OC-3 (SDH STM-1) physical layers for ATM and other services.

These HFBR-5900  transceivers are all supplied in the new industry standard 2 x 5 DIP style with a MT-RJ fiber connector interface.
