Five Points

Part Number: HGT1S20N60C3R

MFG: HARRIS

Package Cooled: DIP/SOP

D/C: 08+

Description: This family of IGBTs was designed for optimum performance in the demanding world of motor control oper...

HGT1S20N60C3R General Description

This family of IGBTs was designed for optimum performance in the demanding world of motor control operation as well as other high voltage switching applications. These devices demonstrate RUGGED performance capability when subjected to harsh SHORT CIRCUIT WITHSTAND TIME (SCWT) conditions. The parts have ULTRAFAST (UFS) switching speed while the on-state conduction losses have been kept at a low level.

The electrical specifications include typical Turn-On and Turn-Off dv/dt ratings. These ratings and the Turn-On ratings include the effect of the diode in the test circuit (Figure 16). The data was obtained with the diode at the same T_Jas the IGBT under test.

Formerly Developmental Type TA49047.

HGT1S20N60C3R Maximum Ratings

                                                                                                                             ALL TYPES        UNITS
Collector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .BV_CES                   600                  V
Collector Current Continuous
    At T_C = 25^oC . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . I_C25                     40                    A
    At T_C = 110^oC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_C110                     20                    A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . .. .I_CM                     80                    A
Gate-Emitter Voltage Continuous . . . . . . . . . . . . . . . . . . . . . . . . . V_GES                     ±20                  V
Gate-Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . .. . . . . . . V_GEM                     ±30                  V
Switching Safe Operating Area at T_J = 150^oC, Fig. 12 . . . . . . . .. . .S_SOA                 80A at 600           V
Power Dissipation Total at T_C = 25^oC . . . . . . . . . . . . . . . . . . . . . . . . P_D                     164                  W
Power Dissipation Derating T_C > 25^oC . . . . . . . . . . . . . . . . . . . . . . . . .                      1.32               W/^oC
Reverse Voltage Avalanche Energy . . . . . . . . . . . . . . . . . . . . . . . . . E_ARV                      100                 mJ
Operating and Storage Junction Temperature Range . . . . . . . . . T_J, T_STG                 -40 to 150          ^oC
Maximum Lead Temperature for Soldering. . . . . . . . . . . . . . . . . . . . . .T_L                       260               ^oC
Short Circuit Withstand Time (Note 2) at V_GE = 15V . . . . . . . . . . . . . t_SC                       10                  ms
NOTES:
   1. Pulse width limited by maximum junction temperature.
   2. V_CE(PK)= 440V, T_J = 150oC, R_GE = 10W.

HGT1S20N60C3R Features

• 40A, 600V T_J = 25^oC
• 600V Switching SOA Capability
• Typical Fall Time at T_J= 150oC . . . . . . . . . . . . . 330ns
• Short Circuit Rating at T_J = 150oC. . . . . . . . . . .. 10s
• Low Conduction Loss

HGT1S20N60C3R datasheet

HGT1S20N60C3R
PDF/DataSheet Download

Datasheet: HGT1S20N60C3R
File Size: 110307 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Click here to Download

·HGT1N30N60A4D
FAIRCHILD [Fairchild Semiconductor]
600V, SMPS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode
147560 KB
·HGT1N40N60A4
FAIRCHILD [Fairchild Semiconductor]
600V, SMPS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode
155981 KB
·HGT1N40N60A4D
FAIRCHILD [Fairchild Semiconductor]
600V, SMPS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode
155981 KB
·HGT1S10N120BNS
FAIRCHILD [Fairchild Semiconductor]
35A, 1200V, NPT Series N-Channel IGBT
83631 KB
·HGT1S11N120CNS
INTERSIL [Intersil Corporation]
43A, 1200V, NPT Series N-Channel IGBT
141382 KB
·HGT1S12N60A4DS
FAIRCHILD [Fairchild Semiconductor]
600V, SMPS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode
404005 KB
·HGT1S12N60A4S
INTERSIL [Intersil Corporation]
600V, SMPS Series N-Channel IGBT
117801 KB
·HGT1S12N60A4S9A
FAIRCHILD [Fairchild Semiconductor]
600V, SMPS Series N-Channel IGBTs
235127 KB

Related Part Number

HGT1S20N60C3R Relative Products

HGT1S20N60B3S
The HGT1S20N60B3S, the HGTP20N60B3 and the HGTG20N60B3 are Generation III MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistors. These devices have the high input impedance of a MOSFET and the low on-state co...

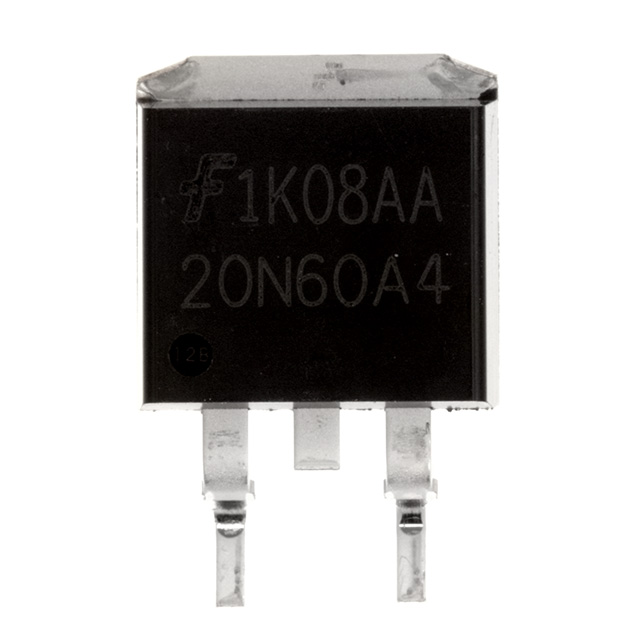

HGT1S20N60A4S9A
