Part Number: HGTG11N120CND





Package Cooled: TO-3P

D/C: 09+

Description: The HGTG11N120CND is a Non-Punch Through (NPT) IGBT design. This is a new member of the MOS gated high voltage switchin...


Urgent Purchase

HGTG11N120CND General Description


The HGTG11N120CND is a Non-Punch Through (NPT) IGBT design. This is a new member of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The IGBT used is the development type TA49291. The Diode used is the development type TA49189.

The IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.

Formerly Developmental Type TA49303.

HGTG11N120CND Maximum Ratings

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BVCES 1200 V
Collector Current Continuous At TC= 25. . . . . . . . . . . . . . . . . . . . . . . . . . IC25 43 A
Collector Current Continuous At TC= 110. . . . . . . . . . . . . . . . . . . . . . . .   IC25 22A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM 80 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..VGEM ±30 V
Switching Safe Operating Area at TJ= 150 (Figure 2) . . . . . . . . .SSOA 55A at 1200V
Power Dissipation Total at TC= 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . PD 298 W
Power Dissipation Derating TC> 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .2.38 W/
Operating and Storage Junction Temperature Range . . . . . . . . . TJ, TSTG -55 to 150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . TL 260
Short Circuit Withstand Time (Note 2) at VGE= 15V . . . . . . . . . . . . . . . . . . . . . tSC 8µs
Short Circuit Withstand Time (Note 2) at VGE= 12V . . . . . . . . . . . . . . . . . . . ..tSC 15µs

HGTG11N120CND Features

• 43A, 1200V, TC= 25
• 1200V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 340ns at TJ= 150
• Short Circuit Rating
• Low Conduction Loss
•Thermal Impedance SPICE Model

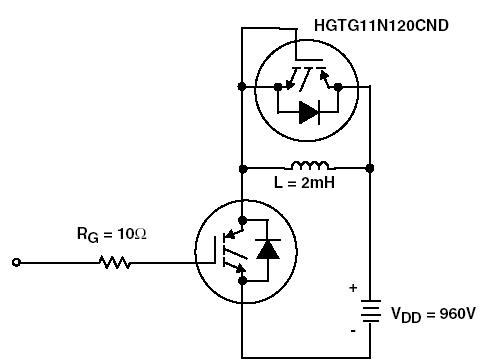

HGTG11N120CND Connection Diagram

HGTG11N120CND Connection Diagram

HGTG11N120CND datasheet

HGTG11N120CND
PDF/DataSheet Download

  • Datasheet: HGTG11N120CND
  • File Size: 112767 KB
  • Manufacturer: INTERSIL [Intersil Corporation]
  • Click here to Download
