HGTG20N50C1D

Features: • 20A, 500V• Latch Free Operation• Typical Fall Time < 500ns• High Input Impedance• Low Conduction Loss• With Anti-Parallel Diode• tRR < 60nsPinoutSpecificationsCollector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . ....

product image

HGTG20N50C1D Picture
See larger image
SeekIC No. : 004362156 Detail

HGTG20N50C1D: Features: • 20A, 500V• Latch Free Operation• Typical Fall Time < 500ns• High Input Impedance• Low Conduction Loss• With Anti-Parallel Diode• tRR < 60n...

HGTG20N50C1D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HGTG20N50C1D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 20A, 500V
• Latch Free Operation
• Typical Fall Time < 500ns
• High Input Impedance
• Low Conduction Loss
• With Anti-Parallel Diode
• tRR < 60ns


Pinout

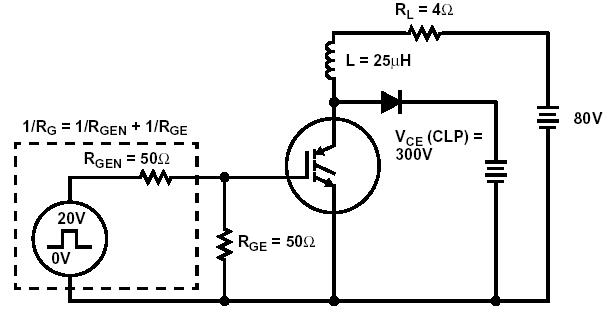

Connection Diagram


Specifications

Collector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCES 500 V
Collector-Gate Voltage RGE = 1MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCGR 500 V
Collector Current Continuous at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IC25 26 A
Collector Current Continuous at TC = +90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IC90 20 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ICM 35 A
Gate-Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGES ±20 V
Diode Forward Current at TC = +25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IF25 26 A
Diode Forward Current at TC = +90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. IF90 20 A
Power Dissipation Total at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PD 75 W
Power Dissipation Derating TC > +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . TJ, TSTG -55 to +150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TL 260


Description

The HGTG20N50C1D IGBT is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. The HGTG20N50C1D has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between +25 and +150. The diode used in parallel with the IGBT is an ultrafast (tRR < 60ns) with soft recovery characteristic. HGTG20N50C1D IGBTs are ideal for many high voltage switching applications operating at frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contractors.
