Product Details

Description



Features:

• 63A, 600V at TC = 25
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 230ns at TJ = 150
• Short Circuit Rating
• Low Conduction Loss


Pinout

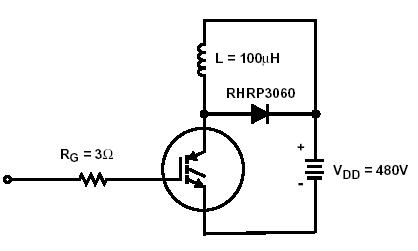

Connection Diagram


Specifications

Collector To Emitter Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCES 600 V
Collector Current Continuous At TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  IC25 63 A
Collector Current Continuous At TC = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . .IC110 30 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM 252 A
Gate To Emitter Voltage Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGES ±20 V
Gate To Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGEM ±30 V
Switching Safe Operating Area at TJ = 150 (Figure 14) . . . . . . . . . . .  SSOA 60A at 600V
Power Dissipation Total at TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PD 208 W
Power Dissipation Derating TC > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.67 W/
Reverse Voltage Avalanche Energy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EARV 100 mJ
Operating and Storage Junction Temperature Range . . . . . . . . . . . . .TJ, TSTG -40 to 150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  TL 260
Short Circuit Withstand Time (Note 2) at VGE = 15V. . . . . . . . . . . . . . . . . . . . . . . . tSC 4 µs
Short Circuit Withstand Time (Note 2) at VGE = 10V. . . . . . . . . . . . . . . . . . . . . . ..tSC 15 µs


Description

The HGTG30N60C3 is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. The device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25 and 150.

The HGTG30N60C3 IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.Formerly Developmental Type TA49051.
