HGTP10N120BN

Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Maximum Gate Emitter Voltage : +/- 20 V
Collector- Emitter Voltage VCEO Max : 1200 V
Package / Case : TO-220-3
Gate-Emitter Leakage Current : +/- 250 nA
Power Dissipation : 298 W
Collector-Emitter Saturation Voltage : 2.45 V
Continuous Collector Current at 25 C : 35 A


Features:

• 35A, 1200V, T_C = 25
• 1200V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 140ns at T_J = 150
• Short Circuit Rating
• Low Conduction Loss
• Avalanche Rated
• Thermal Impedance SPICE Model
Temperature Compensating SABER™ Model
www.intersil.com
• Related Literature
- TB334 "Guidelines for Soldering Surface Mount
Components to PC Boards


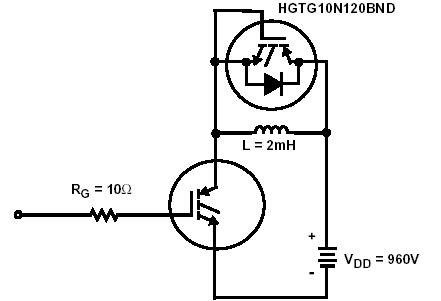

Pinout




Specifications

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BV_CES 1200 V
Collector Current Continuous At T_C = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_C25 35 A
Collector Current Continuous At T_C = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_C110 17 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I_CM 80 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .V_GES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V_GEM ±30 V
Switching Safe Operating Area at T_J = 150 (Figure 2) . . . . . . . . . . . . . . . .. SSOA 55A at 1200V
Power Dissipation Total at T_C = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  P_D 298 W
Power Dissipation Derating T_C > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  2.38 W/
Forward Voltage Avalanche Energy (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  E_AV 80 mJ
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . . . .  T_J, T_STG -55 to 150
Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T_L 260
Package Body for 10s, see Tech Brief 334. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T_pkg 300
Short Circuit Withstand Time (Note 3) at V_GE = 15V. . . . . . . . . . . . . . . . . . . . . . . . . . . . ..t_SC 8 µs
Short Circuit Withstand Time (Note 3) at V_GE = 12V. . . . . . . . . . . . . . . . . . . . . . . . . . . ..t_SC 15 µs


Description

The HGTG10N120BN, HGTP10N120BN and HGT1S10N120BNS are Non-Punch Through (NPT) IGBT designs.  HGTG10N120BN, HGTP10N120BN and HGT1S10N120BNS  are new members of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low onstate conduction loss of a bipolar transistor.

The  HGTG10N120BN, HGTP10N120BN and HGT1S10N120BNS  IGBT is ideal for many high voltage switching applications operating at moderate frequencies where lowconduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.Formerly Developmental Type TA49290.

Parameters:

Technical/Catalog Information	HGTP10N120BN
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	35A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 10A
Power - Max	298W
Mounting Type	Through Hole
Package / Case	TO-220AB
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HGTP10N120BN HGTP10N120BN
