HGTP10N50E1D

Features: • 10A, 400V and 500V• VCE(ON): 2.5V Max.• TFALL: 1ms, 0.5ms• Low On-State Voltage• Fast Switching Speeds• High Input Impedance• Anti-Parallel DiodeApplication• Power Supplies• Motor Drives• Protective CircuitsPinoutSpecification...

product image

HGTP10N50E1D Picture
See larger image
SeekIC No. : 004362187 Detail

HGTP10N50E1D: Features: • 10A, 400V and 500V• VCE(ON): 2.5V Max.• TFALL: 1ms, 0.5ms• Low On-State Voltage• Fast Switching Speeds• High Input Impedance• Anti-Parallel Diod...

HGTP10N50E1D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HGTP10N50E1D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 10A, 400V and 500V
• VCE(ON): 2.5V Max.
• TFALL: 1ms, 0.5ms
• Low On-State Voltage
• Fast Switching Speeds
• High Input Impedance
• Anti-Parallel Diode


Application

• Power Supplies
• Motor Drives
• Protective Circuits


Pinout

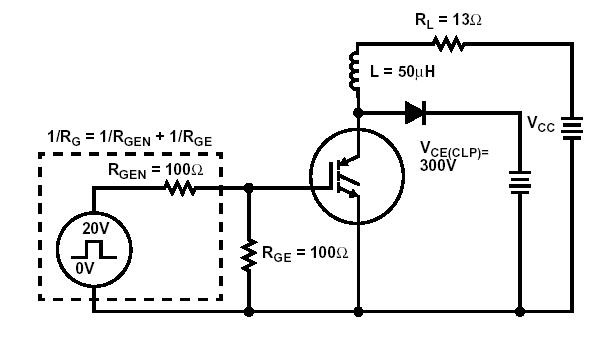

Connection Diagram


Specifications

Collector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .VCES 400 500 V
Collector-Gate Voltage RGE = 1MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .     VCGR 400 500 V
Gate-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .  .  .  .  .  .  .   VGE ±20 ±20 V
Collector Current Continuous at TC = +25 . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .   IC25 17.5 17.5 A
Collector Current Continuous at TC = +90 . . . . . . . . . . . . . . . . . . . . . . . . . .   .  .  .  .  .  .   IC90 10 10
Power Dissipation Total at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .   PD 75 75 W
Power Dissipation Derating TC > +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  0.6 0.6 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . TJ, TSTG -55 to +150 -55 to +150


Description

The HGTP10N40C1D, HGTP10N40E1D, HGTP10N50C1D, and HGTP10N50E1D are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for high voltage, low on-dissipation applications such as switching regulators and motor drivers. They feature a discrete anti-parallel diode that shunts current around the IGBT in the reverse direction without introducing carriers into the depletion region. These types can be operated directly from low power integrated circuits.
