HGTP12N60C3

Collector- Emitter Voltage VCEO Max : 600 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Maximum Gate Emitter Voltage : +/- 20 V
Package / Case : TO-220-3
Gate-Emitter Leakage Current : +/- 100 nA
Continuous Collector Current at 25 C : 24 A
Collector-Emitter Saturation Voltage : 1.65 V
Power Dissipation : 104 W


Features:

• 24A, 600V at T_C = 25
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 230ns at T_J = 150
• Short Circuit Rating
• Low Conduction Loss


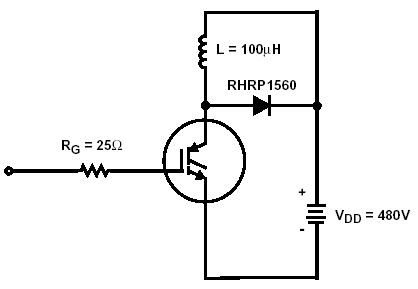

Pinout




Specifications

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BV_CES 600 V
Collector Current Continuous At T_C = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I_C25 24 A
Collector Current Continuous At T_C = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I_C110 12 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_CM 96 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V_GES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V_GEM ±30 V
Switching Safe Operating Area at T_J = 150 (Figure 14) . . . . . . . . . . . . .  SSOA 24A at 600V
Power Dissipation Total at T_C = 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P_D 104 W
Power Dissipation Derating T_C > 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.83 W/
Reverse Voltage Avalanche Energy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E_ARV 100 mJ
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . T_J, T_STG -40 to 150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T_L 260
Short Circuit Withstand Time (Note 2) at V_GE = 15V. . . . . . . . . . . . . . . . . . . . . . . .  . .t_SC 4 µs
Short Circuit Withstand Time (Note 2) at V_GE = 10V. . . . . . . . . . . . . . . . . . . . . . . . ..t_SC 13 µs


Description

The HGTP12N60C3 and HGT1S12N60C3S are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistors. These  HGTP12N60C3 and HGT1S12N60C3S  devices have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25 and 150.

The HGTP12N60C3 and HGT1S12N60C3S  IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.Formerly Developmental Type TA49123.

Parameters:

Technical/Catalog Information	HGTP12N60C3
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	24A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 12A
Power - Max	104W
Mounting Type	Through Hole
Package / Case	TO-220AB
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HGTP12N60C3 HGTP12N60C3
