Purchase HI-8482, In-stock HI-8482 From SeekIC.
Part Number: HI-8482
Description: TheHI-8482bus interfaceunit isasilicongateCMOSdevice designed as a dual differential line receiver in accordance with the requirements of ...
- Table of contents:
HI-8482
-
Suppliers
DataSheet
General Description
HI-8482 General Description
TheHI-8482bus interfaceunit isasilicongateCMOSdevice designed as a dual differential line receiver in accordance with the requirements of the ARINC429 bus specification.
Thedevicetranslates incomingARINC429signals to normal CMOS/TTL levels on each of its two independent receive channels.
The HI-8482 is also functionally equivalent totheFairchild/Raytheon RM3183. The self-test inputs force the outputs to either a ZERO, ONE, or NULL state for system tests. While in self-test mode, theARINCinputsareignored.
All the ARINC inputs have built-in hysteresis to reject n oise that may be present on the ARINCbus. Additional input noise filtering can also be accomplished with external capacitors. The HI-8482 line receiver is one of several options offeredby Holt IntegratedCircuits tointerfacetotheARINC bus.
Thedigital dataprocessingfor serial-to-parallel conversion and clock recovery can beaccomplishedwith the HI-6010, HI-8683or similar devices. The HI-8482 is available in a variety of ceramic & plastic packages including Small Outline (SOIC), DIP&Leadless ChipCarrier (LCC). J-Lead PLCC, Cerquad,
HI-8482 Maximum Ratings
Supply Voltage, +V S:.................................................................+20 VDC
-VS: ..................................................................-20 VDC
+VL :.................................................................... +7 VDC
Operating Temperature Range: (Industrial) ..................-40°C to +85°C
(Hi-Temp) ................ -55°C to +125°C
(Military) .................-55°C to +125°C
Voltage at ARINC Inputs: ......................................................-29V to +29V
Voltage at Any Other Input:............................................-0.3V toVL + 0.3V
Output Short Circuit Protected: ............................................Not Protected
Storage Temperature Range: ....................................... -65°C to +150°C
Soldering Temperature: (Ceramic).................................30 sec. at +300°C
(Plastic - leads).................................10 sec. at +280°C
(Plastic - body) ..........................................+220°C Max.
-VS: ..................................................................-20 VDC
+VL :.................................................................... +7 VDC
Operating Temperature Range: (Industrial) ..................-40°C to +85°C
(Hi-Temp) ................ -55°C to +125°C
(Military) .................-55°C to +125°C
Voltage at ARINC Inputs: ......................................................-29V to +29V
Voltage at Any Other Input:............................................-0.3V toVL + 0.3V
Output Short Circuit Protected: ............................................Not Protected
Storage Temperature Range: ....................................... -65°C to +150°C
Soldering Temperature: (Ceramic).................................30 sec. at +300°C
(Plastic - leads).................................10 sec. at +280°C
(Plastic - body) ..........................................+220°C Max.
HI-8482 Features
·Converts ARINC 429 levels to digital data
·Direct replacement for the RM3183
·Greater than 2 volt receiving hysteresis
·TTL and CMOS outputs and test inputs
·Military screening available
·20-Pin SOIC, PLCC, CERQUAD. DIP & LCC packages are available
·Direct replacement for the RM3183
·Greater than 2 volt receiving hysteresis
·TTL and CMOS outputs and test inputs
·Military screening available
·20-Pin SOIC, PLCC, CERQUAD. DIP & LCC packages are available

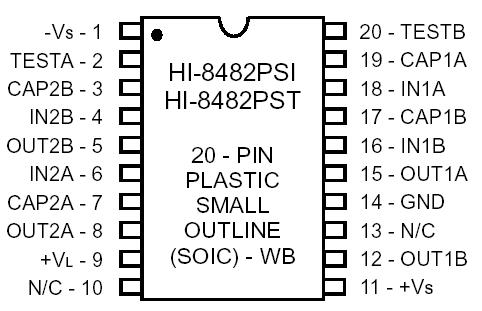

HI-8482 Connection Diagram
HI-8482
PDF/DataSheet Download
- Datasheet: HI-8482
- File Size: 692691 KB
- Manufacturer: HOLTIC [Holt Integrated Circuits]
- Click here to Download
