Product Details

Description



Features:

• This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• 20 MSPS with No Missing Codes
• 18MHz Full Power Input Bandwidth
• No Missing Codes Over Temperature
• Sample and Hold Not Required
• Single +5V Supply Voltage
• CMOS/TTL
• Overflow Bit


Application

• Video Digitizing
• Radar Systems
• Medical Imaging
• Communication Systems
• High Speed Data Acquisition Systems


Pinout

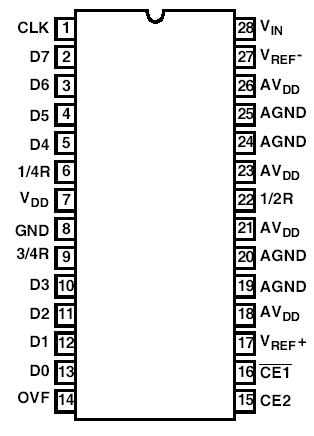

Connection Diagram


Specifications

Supply Voltage, VDD to GND . . . . . . . . . .(GND - 0.5) < VDD < +7.0V
Analog and Reference Input Pins. .(VSS - 0.5) < VINA < (VDD +0.5V)
Digital I/O Pins . . . . . . . . . . . . . .  (GND - 0.5) < VI/O < (VDD +0.5V)
Operating Temperature Range
HI1-5700S/883 . . . . . . . . . . . . . . . . . . . . . . . . . . .  -55 to +125
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175
Storage Temperature Range . . . . . . . . . . . . . . . .. .  -65to +150
Lead Temperature (Soldering, 10s) . . . . . . . . . . . . . . . . . . . . 300
ESD Clasification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The HI-5700/883 is a monolithic, 8-bit, CMOS Flash Analogto-Digital Converter. It is designed for high speed applications where wide bandwidth and low power consumption are essential. Its 20 MSPS speed is made possible by a parallel architecture which also eliminates the need for an external sample and hold circuit. The HI-5700/883 delivers ±0.5 LSB differential nonlinearity while consuming only 725mW (typical) at 20 MSPS. Microprocessor compatible data output latches are provided which present valid data to the output bus 1.5 clock cycles after the convert command is received. An overflow bit is provided to allow the series connection of two converters to achieve 9-bit resolution.
