HI5630

Features:

• Triple 8-Bit A/D Converter on a Monolithic Chip
• Sampling Rate . . . . . . . . . . . . . . . . . . . . . . . . . . .80MSPS
• ENOB (fIN = 1MHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.6
• Wide Full Power Input Bandwidth. . . . . . . . . . . . . 300MHz
• Internal Band-Gap Voltage Reference . . . . . . . . . . . . 2.5V
• Excellent Channel-to-Channel Isolation . . . . . . . . . >75dB
• Single Supply Voltage Operation . . . . . . . . . . . . . . . . +5V
• On-Chip Sample and Hold Amplifiers
• Clock Output
• Offset Binary or Two's Complement Output Format
• Stand-By Low Power mode


Application

• LCD Monitors, Projectors and Plasma Display Panels
• Video Digitizing (RGB, Composite or Y-C)
• Medical Imaging
• High Speed Multi-Channel Data Acquisition

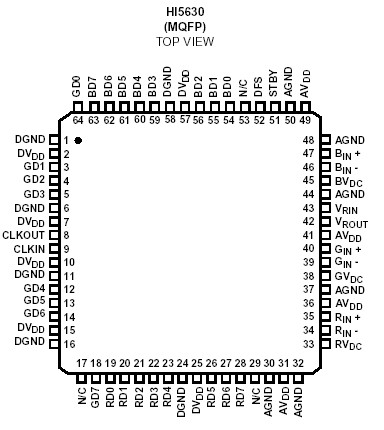

Pinout




Specifications

Supply Voltage, AV_DD or DV_DD to AGND or DGND . . . . . . . .  .. . .6V
DGND to AGND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 0.3V
Digital I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DGND to DV_DD
Analog I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . AGND to AV_DD


Description

The HI5630 is a monolithic, triple 8-bit, 80MSPS analog-to-digital converter fabricated in an advanced CMOS process. It is designed for digitizing RGB graphics from work stations and personal computers. The HI5630 reaches a new level of multi-channel integration. The fully pipeline architecture and an innovative input stage enable the HI5630 to accept a variety of single-ended or fully differential input configurations which present valid data to the output bus with a latency of 5 clock cycles. Only one external clock is necessary to drive all three converters with a clock out signal provided. An internal band-gap voltage reference is also provided allowing the system designer to realize an increased level of system integration resulting in decreased cost and power dissipation.

The HI5630 can be bench tested using a complete ADC evaluation board with clock drivers, ADC, latches and a reconstruct DAC. In addition, complete LCD monitor reference designs are available for immediate volume production (contact factory).
