HI5728

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . .125MSPS
• Low Power . . . . . . . . . . . . . . . 330mW at 5V, 54mW at 3V
• Integral Linearity Error . . . . . . . . . . . . . . . . . . . . . ±1 LSB
• Differential Linearity . . . . . . . . . . . . . . . . . . . . . . ±0.5 LSB
• Gain Matching (Typ) . . . . . . . . . . . . . . . . . . . . . . . . . .0.5%
• SFDR at 5MHz Output . . . . . . . . . . . . . . . . . . . . . . .68dBc
• Single Power Supply from +5V to +3V
• CMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range
• Internal Voltage Reference
• Dual 10-Bit D/A Converters on a Monolithic Chip




Application

• Wireless Local Loop
• Direct Digital Frequency Synthesis
• Wireless Communications
• Signal Reconstruction
• Arbitrary Waveform Generators
• Test Equipment/Instrumentation
• High Resolution Imaging Systems

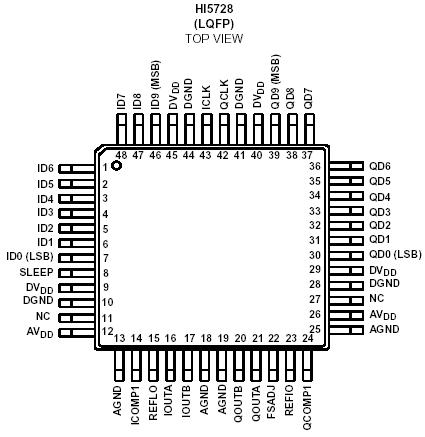

Pinout






Specifications

Digital Supply Voltage DV_DD to DCOM . . . . . . . . . . . . . .. . . . +5.5V
Analog Supply Voltage AV_DD to ACOM. . . . . . . . . . . . .. . . . . +5.5V
Grounds, ACOM TO DCOM . . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V
Digital Input Voltages (D9-D0, CLK, SLEEP). . . . . . . . . DV_DD +0.3V
Internal Reference Output Current. . . . . . . . . . . . . . . . . . . ±50µA
Reference Input Voltage Range. . . . . . . . . . . . . . . . . . AV_DD +0.3V
Analog Output Current (I_OUT) . . . . . . . . . . . . . . . . . . . . . . . 24mA




Description

The HI5728 is a 10-bit, dual 125MSPS D/A converter which is implemented in an advanced CMOS process. HI5728 is designed for high speed applications where integration, bandwidth and accuracy are essential. Operating from a single +5V or +3V supply, the converter provides 20.48mA of full scale output current and includes an input data register.
