HI5828

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . .125+MSPS
• Low Power . . . . 312mW at 5V, 46mW at 3V (at 60MSPS)
• Integral Linearity Error . . . . . . . . . . . . . . . . . . . ±0.75 LSB (Typ)
• Adjustable Full Scale Output Current . . . . . . 2mA to 20mA
• Internal 1.2V Bandgap Voltage Reference
• Single or Dual Power Supply from +3V to +5V
• Power Down Mode
• CMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range (76dBc, fS = 50MSPS, fOUT = 2.51MHz)
• Excellent Multitone Intermodulation Distortion




Application

• Basestations (Cellular, WLL)
• Quadrature Modulation
• Wireless Communications Systems
• Direct Digital Frequency Synthesis
• Signal Reconstruction
• Medical/Test Instrumentation
• High Resolution Imaging Systems
• Arbitrary Waveform Generators

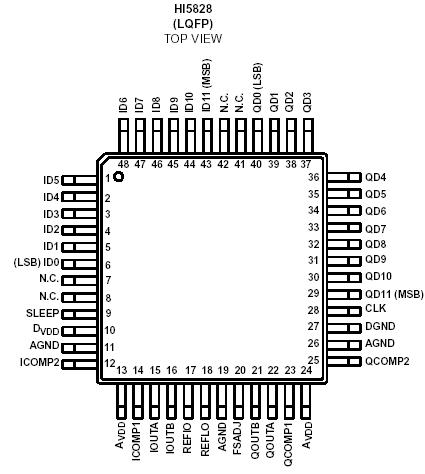

Pinout






Specifications

Digital Supply Voltage DV_DD to DGND . . . . . . . . . . . . . . . . . . +5.5V
Analog Supply Voltage AV_DD to AGND . . . . . . . . . . . . . . . . . .+5.5V
Grounds, AGND TO DGND . . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V
Digital Input Voltages (D11-D0, CLK, SLEEP). . . . . . . DV_DD + 0.3V
Reference Input Voltage Range. . . . . . . . . . . . . . . . . AV_DD + 0.3V
Analog Output Current (IOUTA/B, QOUTA/B) . . . . . . . . . . . . 24mA




Description

The HI5828 is a Dual 12-bit, 125+MSPS (Mega Samples Per Second), high speed, low power, D/A converter which is implemented in an advanced CMOS process. Operating from a single +3V to +5V supply, the converter provides 20mA of full scale output current and includes edge-triggered CMOS input data latches. Low glitch energy and excellent frequency domain performance is achieved by the HI5828's segmented current source architecture.

This HI5828 complements the CommLink HI5x60 and HI5x28 family of high speed converters, which includes 8, 10, 12, and 14-bit devices
