HIN202E

Features:

• High Speed ISDN Compatible . . . . . . . . . . . . . 230kbits/s
• ESD Protection for RS-232 I/O Pins to ±15kV (IEC1000)
• Meets All RS-232E and V.28 Specifications
• Requires Only 0.1µF or Greater External Capacitors
HIN205E and HIN235E Require No External Capacitors)
• Two Receivers Active in Shutdown Mode (HIN213E)
• Requires Only Single +5V Power Supply
• Onboard Voltage Doubler/Inverter
• Low Power Consumption (Typ). . . . . . . . . . . . . . . . . .5mA
• Low Power Shutdown Function (Typ). . . . . . . . . . . . .1µA
• Three-State TTL/CMOS Receiver Outputs
• Multiple Drivers
- ±10V Output Swing for +5V Input
- 300ΩPower-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
• Multiple Receivers
- ±30V Input Voltage Range
- 3kΩto 7kΩ
•Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection




Application

•Any System Requiring High-Speed RS-232
Communications Port
- Computer - Portable, Mainframe, Laptop
- Peripheral - Printers and Terminals
- Instrumentation, UPS
- Modems, ISDN Terminal Adaptors

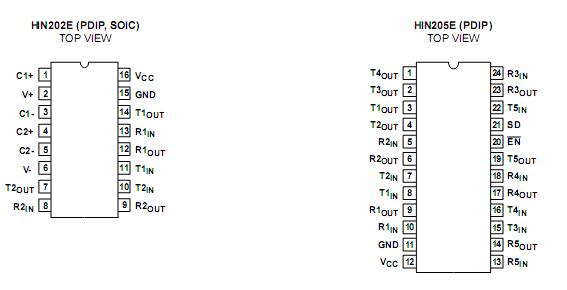

Pinout






Specifications

V_CCto Ground. . . . . . . . . . . . . . . . . . . . . . . . (GND -0.3V) < V_CC< 6V
V+ to Ground. . . . . . . . . . . . . . . . . . . . . . . . .(V_CC-0.3V) < V+ < 12V
V- to Ground. . . . . . . . . . . . . . . . . . . . . . . . -12V < V- < (GND +0.3V)
Input Voltages
T_IN. . . . . . . . . . . . . . . . . . . . . . . . . . . .(V- -0.3V) < V_IN< (V+ +0.3V)
R_IN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30V
Output Voltages
T_OUT. . . . . . . . . . . . . . . . . . . . . . .(V- -0.3V) < V_TXOUT< (V+ +0.3V)
R_OUT. . . . . . . . . . . . . . . . . . . . . (GND -0.3V) < V_RXOUT< (V+ +0.3V)
Short Circuit Duration
T_OUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
R_OUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
ESD Classification. . . . . . . . . . . . . . . . . . . . . See Specification Table




Description

The HIN202E-HIN241E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where 12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to 15kV ESD (Electrostatic Discharge). HIN202E-HIN241E require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offers a wide variety of highspeed RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table). The HIN206E, HIN211E and HIN213E feature a low power shutdown mode to conserve energy in battery powered applications. In addition, the HIN213E provides two active receivers in shutdown mode allowing for easy wakeup capability. The drivers feature true TTL/CMOS input compatibility, slew rate-limited output, and 300 power-off source impedance. The receivers can handle up to 30V input, and have a 3k to 7k input impedance. The receivers also feature hysteresis to greatly improve noise rejection.

The HIN202E-HIN241E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where ± 12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ± 15kV ESD (Electrostatic Discharge).Theyrequireasingle+5Vpowersupplyandfeature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The HIN205E and HIN235E require no external capacitors and are ideally suited for applications where circuit board space is critical. The family of devices offers a wide variety of high-speed RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table).

The HIN202E-HIN241E feature alow power shut down mode to conserve energy in battery powered applications. In addition, the HIN213E provides two active receivers in shutdown mode allowing for easy "wakeup" capability. The drivers feature true TTL/CMOS input compatibility, slew rate-limitedoutput,and300Ω power offsourceimpedance.The receivers can handle up to ±30V input, and have a 3kΩto 7kΩ input impedance. The receivers also feature hysteresis to greatly improve noise rejection.
