HIN213

Features:

• Meets All RS-232E and V.28 Specifications
• HIN203 and HIN205 Require No External Capacitors
• Requires Only 0.1µF or Greater External Capacitors
• High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . .120kbit/s
• Two Receivers Active in Shutdown Mode (HIN213)
• Requires Only Single +5V Power Supply
- (+5V and +12V - HIN201)
• Onboard Voltage Doubler/Inverter
• Low Power Consumption (Typ) . . . . . . . . . . . . . . . . . 5mA
• Low Power Shutdown Function (Typ) . . . . . . . . . . . . 1µA
• Three-State TTL/CMOS Receiver Outputs
• Multiple Drivers
- ±10V Output Swing for +5V lnput
- 300Ω Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
- 30V/µs Maximum Slew Rate
• Multiple Receivers
- ±30V Input Voltage Range
- 3kΩ to 7kΩ Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection




Application

• Any System Requiring RS-232 Communications Port
- Computer - Portable, Mainframe, Laptop
- Peripheral - Printers and Terminals
- Instrumentation
- Modems

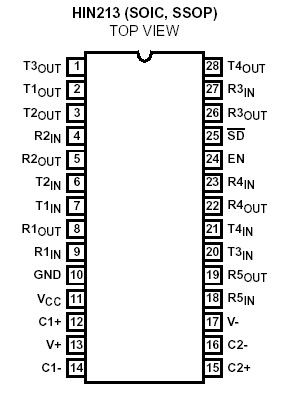

Pinout

Specifications

V_CC to Ground. . . . . . . . . . . . . . . . . . . . . . (GND -0.3V) <VCC < 6V
V+ to Ground . . . . . . . . . . . . . . . . . . . . . . . (V_CC -0.3V) <V+ < 12V
V- to Ground. . . . . . . . . . . . . . . . . . . . . . . -12V < V- < (GND +0.3V)
Input Voltages
T_IN . . . . . . . . . . . . . . . . . . . . . . .. . . (V- -0.3V) < VIN < (V+ +0.3V)
R_IN . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . ±30V
Output Voltages
T_OUT . . . . . . . . . . . . . . . . . .. .. .(V- -0.3V) < V_TXOUT < (V+ +0.3V)
R_OUT . . . . . . . . . . . . . . . .. .. (GND -0.3V) < V_RXOUT < (V+ +0.3V)
Short Circuit Duration
T_OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . .Continuous
R_OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .Continuous
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1




Description

The HIN201-HIN213 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply (except HIN201) and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The HIN203 and HIN205 require no external capacitors and are ideally suited for applications where circuit board space is critical. The HIN201-HIN213  family of devices offers a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table).

The HIN201-HIN213  feature a low power shutdown mode to conserve energy in battery powered applications. In addition, the HIN213 provides two active receivers in shutdown mode allowing for easy "wakeup" capability.

The drivers feature true TTL/CMOS input compatibility, slew rate-limited output, and 300Ω power-off source impedance. The HIN201-HIN213  receivers can handle up to ±30V input, and have a 3kΩ to 7kΩ input impedance. The receivers also feature hysteresis to greatly improve noise rejection.
