HIN230

Features:

• Meets All RS-232E and V.28 Specifications
• Requires Only Single +5V Power Supply
       - (+5V and +12V - HIN231 and HIN239)
• High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . 120kbps
• HIN233 and HIN235 Require No External Capacitors
• Onboard Voltage Doubler/Inverter
• Low Power Consumption
• Low Power Shutdown Function
• Three-State TTL/CMOS Receiver Outputs
• Multiple Drivers
       - ±10V Output Swing for 5V lnput
       - 300Ω Power-Off Source Impedance
       - Output Current Limiting
       - TTL/CMOS Compatible
       - 30V/µs Maximum Slew Rate
• Multiple Receivers
       - ±30V Input Voltage Range
       - 3kΩ to 7kΩ Input Impedance
       - 0.5V Hysteresis to Improve Noise Rejection


Application

• Any System Requiring RS-232 Communication Ports
       - Computer - Portable, Mainframe, Laptop
       - Peripheral - Printers and Terminals
       - Instrumentation
       - Modems

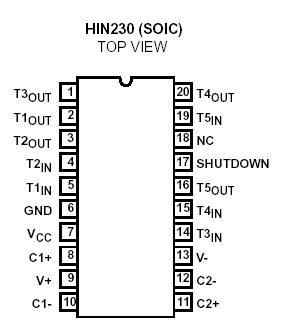

Pinout




Specifications

V_CC to Ground. . . . . . . . . . . . . . . . . . . . . . (GND -0.3V) < VCC < 6V
V+ to Ground . . . . . . . . . . . . . . . . . . . . . .. .(V_CC -0.3V) < V+ < 12V
V- to Ground. . . . . . . . . . . . . . . . . . . . . . .. -12V < V- < (GND +0.3V)
Input Voltages
T_IN . . . . . . . . . . . . . . . . . . . . . . . . . .  .(V- -0.3V) < V_IN < (V+ +0.3V)
R_IN . . . . . . . . . . . . . . . . . . . . . . .  .  . . . . . . . . . . . . . . . . . . . . ±30V
Output Voltages
T_OUT . . . . . . . . . . . . . . . . . .  .  . . .(V- -0.3V) < V_TXOUT < (V+ +0.3V)
R_OUT . . . . . . . . . . . . . . . . . .  .   (GND -0.3V) < V_RXOUT < (V+ +0.3V)
Short Circuit Duration
T_OUT . . . . . . . . . . . . . . . . . . . . . . . .  .  . . . . . . . . . . . . . .Continuous
R_OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous


Description

The HIN230-HIN241 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply (except HIN231 and HIN239) and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The HIN233 and HIN235 require no external capacitors and are ideally suited for applications where circuit board space is critical. The family of devices offer a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table).

The HIN230-HIN241  drivers feature true TTL/CMOS input compatibility, slewrate- limited output, and 300Ω power-off source impedance.

The HIN230-HIN241  receivers can handle up to ±30V, and have a 3kΩ to 7kΩ input impedance. The receivers also feature hysteresis to greatly improve noise rejection.
